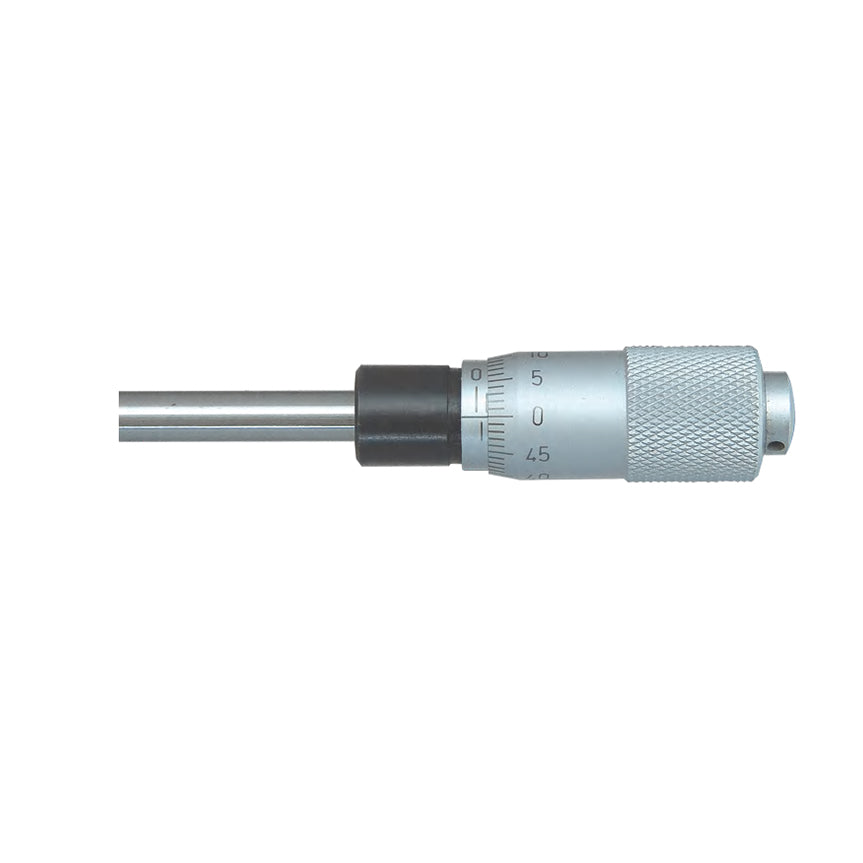

Description
Measurement parameters
Measuring range | Accuracy | Resolution |
---|---|---|
0-10mm | 0.005mm | 0.01mm |
Dimensions
The main parameters
Optional Values | Customer optional parameters or customization |
---|---|
X | 10-29mm |
AND | 8mm、9.5mm、9.525mm、10mm |
D | Φ8mm、Φ9.5mm、Φ9.525mm、Φ10mm |
SR | SR4 or inlaid Φ3.5 steel ball |
L:23.5+X+Y |
