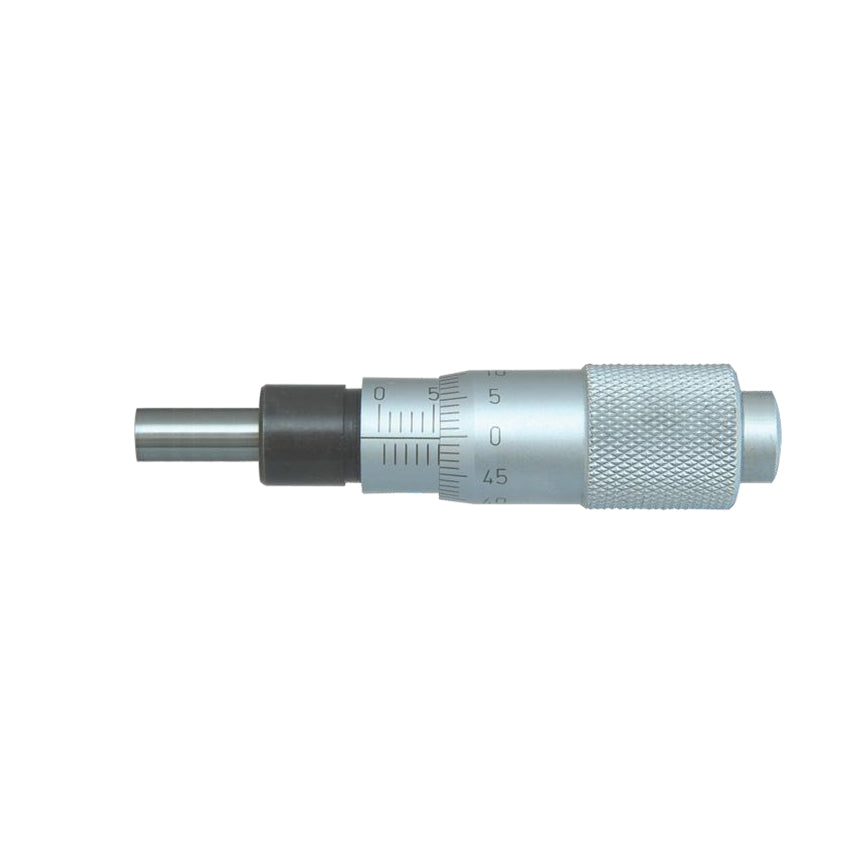

Description
Measurement parameters
Measuring range | Accuracy | Resolution |
---|---|---|
0-13mm | 0.005mm | 0.01mm |
Dimensions
The main parameters
Optional Values | Customer optional parameters or customization |
---|---|
X | 17-19mm |
AND | 9.5mm、9.525mm |
A | 0、4mm、Y |
D | Φ9.5mm Φ9.525mm |
M |
M9.5X0.5 M9.525X0.635 M9.525X0.794 |
L:32+X+Y |
