Description
Measurement parameters
| Part Number | Measuring range | Accuracy | Resolution | Model | |
|---|---|---|---|---|---|

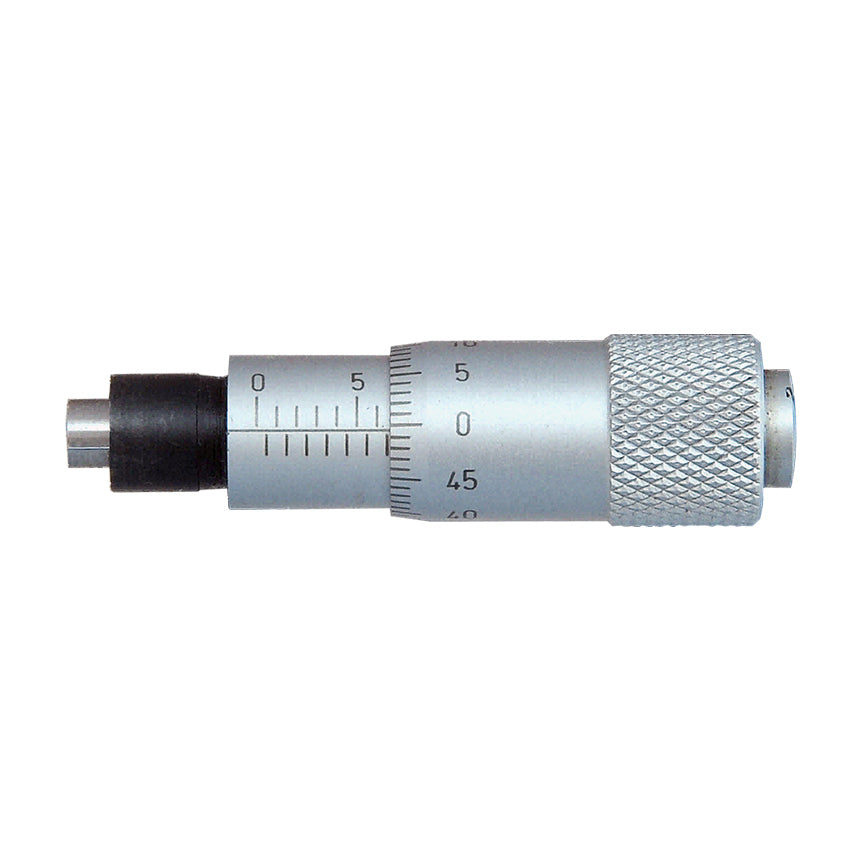

| 0001-050 | 0-6.5mm | 0.005mm | 0.01mm | Flat measuring surface | usually |
| 0011-050 | 0-6.5mm | 0.005mm | 0.01mm | Ball measuring surface | usually |
| 0001-350 | 0-6.5mm | 0.005mm | 0.01mm | Flat measuring surface | With mounting nut |
| 0011-350 | 0-6.5mm | 0.005mm | 0.01mm | Ball measuring surface | With mounting nut |
Dimensional drawing (0001-050)
Dimensional drawing (0001-350)
