Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Model
|
| 0006-050 |
0-25mm |
0.003mm |
One-way reading |
Carbide flat measurement |
| 0006-250 |
0-25mm |
0.003mm |
Bidirectional reading |
Carbide flat measurement |
| 0006-450 |
0-25mm |
0.003mm |
One-way reading |
Additional direct drive device |
| 0006-650 |
0-25mm |
0.003mm |
Bidirectional reading |
Additional direct drive device |
| 0007-050 |
0-50mm |
0.005mm |
One-way reading |
Carbide flat measurement |
| 0007-250 |
0-50mm |
0.005mm |
Bidirectional reading |
Carbide flat measurement |
| 0007-450 |
0-50mm |
0.005mm |
One-way reading |
Additional direct drive device |

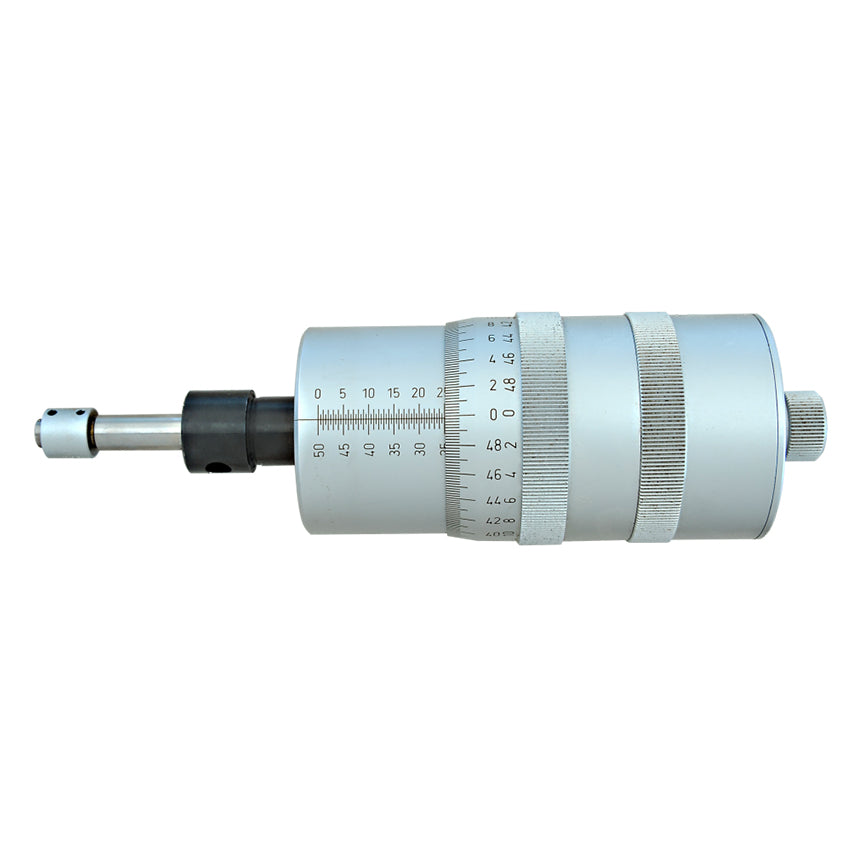

| 0007-650 |
0-50mm |
0.005mm |
Bidirectional reading |
Additional direct drive device |
Dimensions
Main dimensions
| Measuring range |
A |
L |
| 0-25mm |
38.5mm |
119mm |
| 0-50mm |
65mm |
163mm |
