Description
Measurement parameters
| Part Number | Measuring range | Accuracy | Model | |
|---|---|---|---|---|
| 0008-010 | 0-15mm | 0.004mm | Carbide flat measuring surface | usually |
| 0018-010 | 0-15mm | 0.004mm | Carbide ball measuring surface | usually |
| 0008-350 | 0-15mm | 0.004mm | Carbide flat measuring surface | With mounting nut |
| 0018-350 | 0-15mm | 0.004mm | Carbide ball measuring surface | With mounting nut |

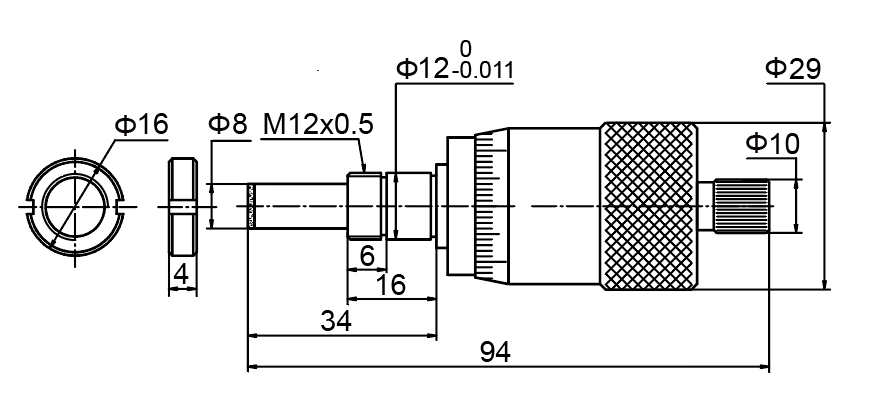

Dimensions (0008-350)

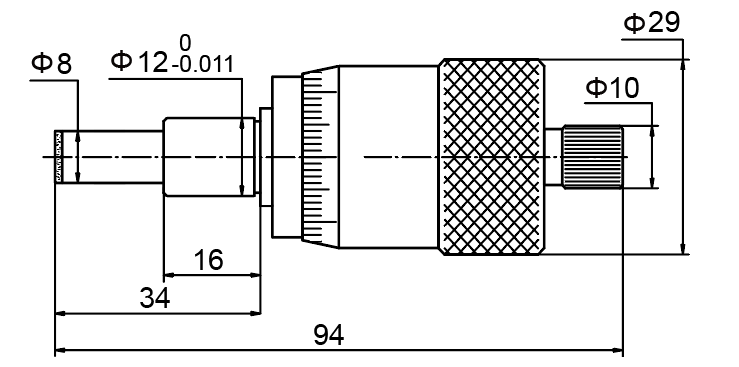

Dimensions (0008-010)
