Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Model |
| usually |
| Resolution: 0.01mm |
| 0403-000 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
No force measurement |
| 0413-000 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
No force measurement |
| 0403-010 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0413-010 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
| Resolution: 0.001mm |
| 0403-002 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
No force measurement |
| 0413-002 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
No force measurement |
| 0403-012 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0413-012 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
| With mounting nut |
| Resolution: 0.01mm |
| 0403-300 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
No force measurement |
| 0413-300 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
No force measurement |
| 0403-310 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0413-310 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
| Resolution: 0.001mm |
| 0403-302 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
No force measurement |
| 0413-302 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
No force measurement |
| 0403-312 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0413-312 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |

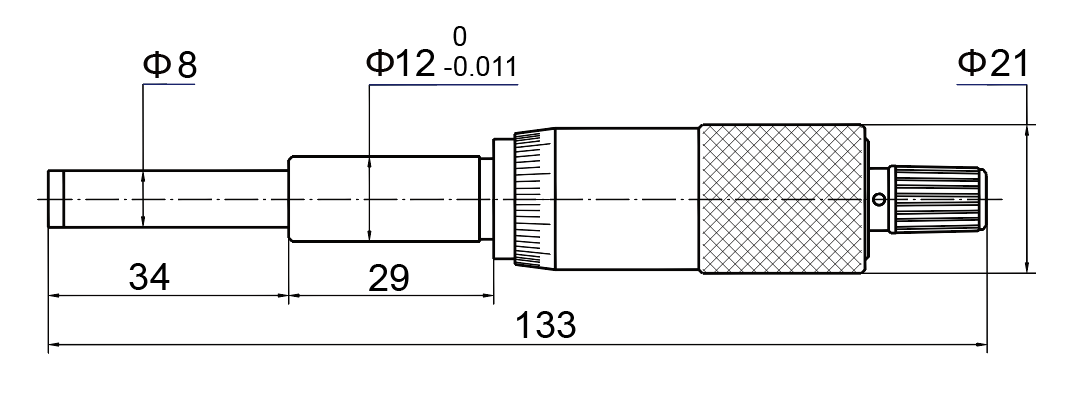

Dimensions (0403-010)

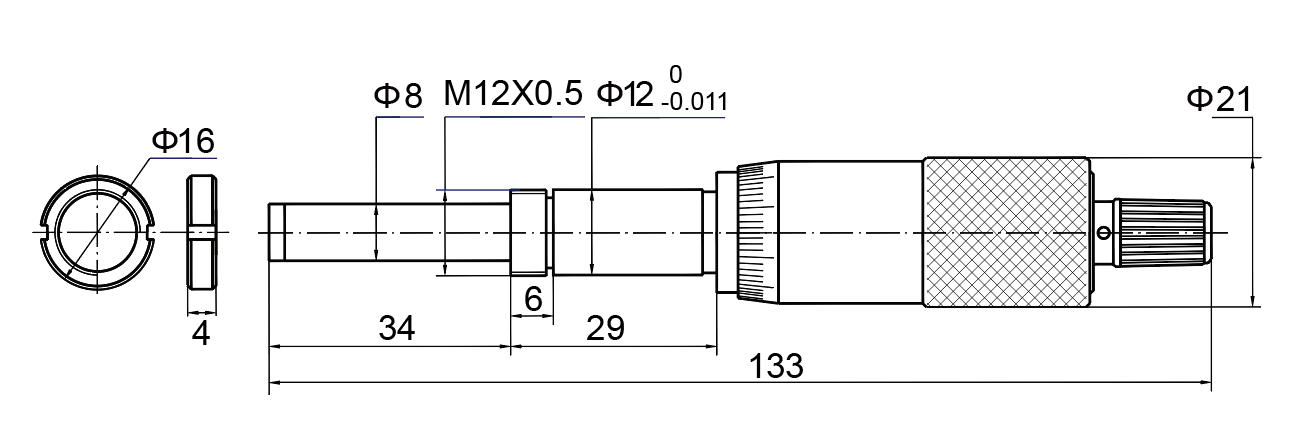

Dimensions (0403-310)
