Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Model
|
| usually |
| Resolution: 0.01mm |
| 0404-000 |
0-50mm |
0.005mm |
Carbide flat measuring surface |
No force measurement |
| 0414-000 |
0-50mm |
0.005mm |
Carbide ball measuring surface |
No force measurement |
| 0404-010 |
0-50mm |
0.005mm |
Carbide flat measuring surface |

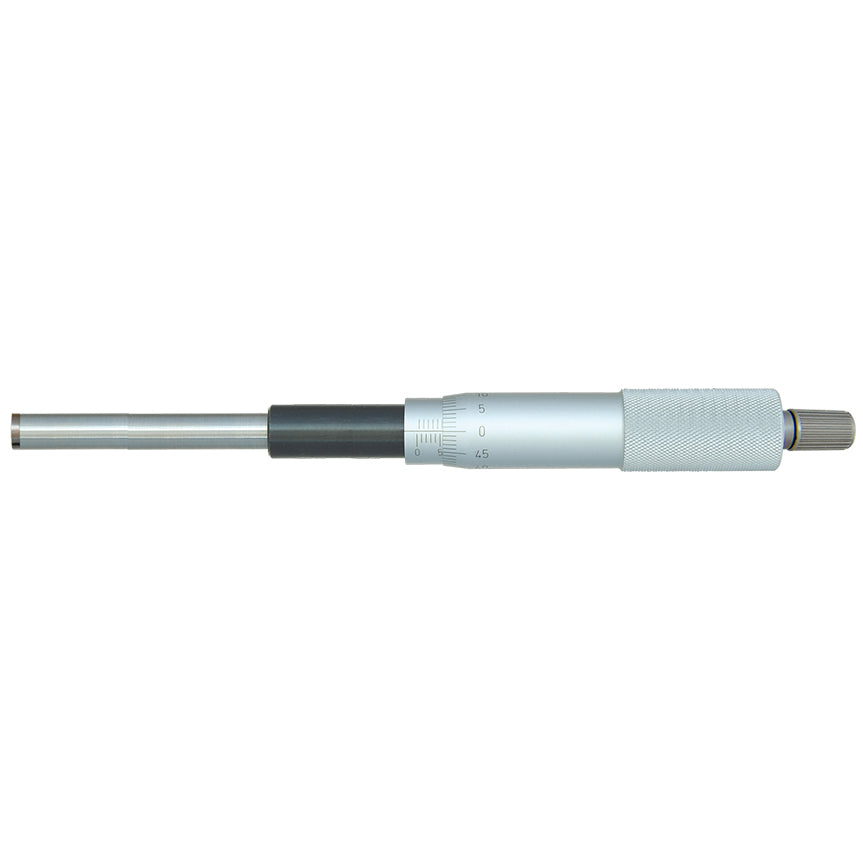

Ratchet force measurement |
| 0414-010 |
0-50mm |
0.005mm |
Carbide ball measuring surface |
Ratchet force measurement |
| Resolution: 0.001mm |
| 0404-002 |
0-50mm |
0.005mm |
Carbide flat measuring surface |
No force measurement |
| 0414-002 |
0-50mm |
0.005mm |
Carbide ball measuring surface |
No force measurement |
| 0404-012 |
0-50mm |
0.005mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0414-012 |
0-50mm |
0.005mm |
Carbide ball measuring surface |
Ratchet force measurement |
| With mounting nut |
| Resolution: 0.01mm |
| 0404-300 |
0-50mm |
0.005mm |
Carbide flat measuring surface |
No force measurement |
| 0414-300 |
0-50mm |
0.005mm |
Carbide ball measuring surface |
No force measurement |
| 0404-310 |
0-50mm |
0.005mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0414-310 |
0-50mm |
0.005mm |
Carbide ball measuring surface |
Ratchet force measurement |
| Resolution: 0.001mm |
| 0404-302 |
0-50mm |
0.005mm |
Carbide flat measuring surface |
No force measurement |
| 0414-302 |
0-50mm |
0.005mm |
Carbide ball measuring surface |
No force measurement |
| 0404-312 |
0-50mm |
0.005mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0414-312 |
0-50mm |
0.005mm |
Carbide ball measuring surface |
Ratchet force measurement |
Dimensions (0404-010)
Dimensions (0404-310)
