Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Model |
| usually |
| Resolution: 0.01mm |
| 0423-000 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
No force measurement |
| 0433-000 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
No force measurement |

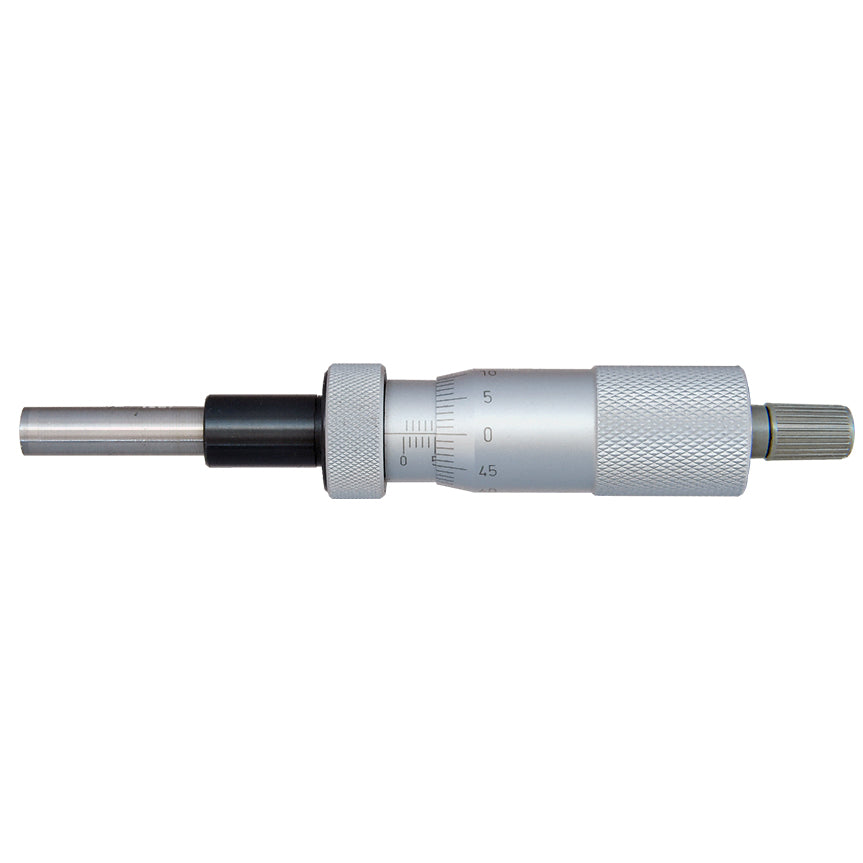

| 0423-010 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0433-010 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
| Resolution: 0.001mm |
| 0423-002 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
No force measurement |
| 0433-002 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
No force measurement |
| 0423-012 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0433-012 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
| With mounting nut |
| Resolution: 0.01mm |
| 0423-300 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
No force measurement |
| 0433-300 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
No force measurement |
| 0423-310 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0433-310 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
| Resolution: 0.001mm |
| 0423-302 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
No force measurement |
| 0433-302 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
No force measurement |
| 0423-312 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
| 0433-312 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
Dimensional drawing (0423-000)
Dimensions (0423-300)
