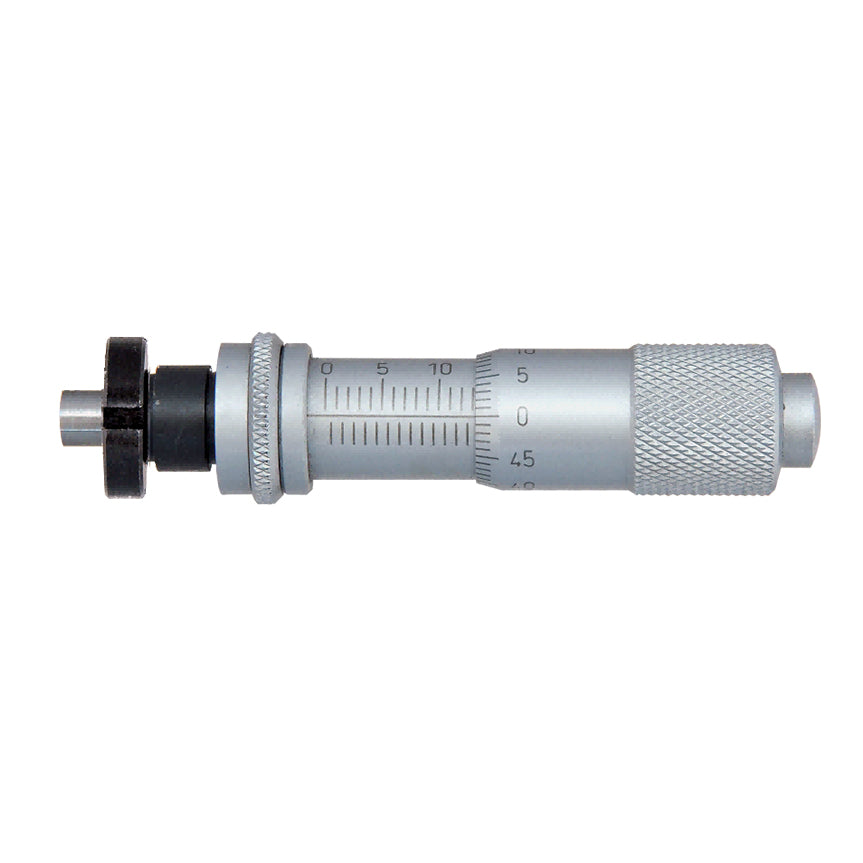

Description
Measurement parameters (with nut installation)
| Part Number | Measuring range | Accuracy | Model | |
|---|---|---|---|---|
| 0002-350 | 0-13mm | 0.004mm | Flat measuring surface | Without screw brake |
| 0702-350 | 0-13mm | 0.004mm | Flat measuring surface | With screw brake |
| 0012-350 | 0-13mm | 0.004mm | Ball measuring surface | Without screw brake |
| 0712-350 | 0-13mm | 0.004mm | Ball measuring surface | With screw brake |
Dimensional drawing (0002-350)
Dimensions (0702-350)
