Description
Measurement parameters
| Part Number | Measuring range | Accuracy | Model | |
|---|---|---|---|---|
| With screw brake device, screw diameter d = Φ6.5mm | ||||

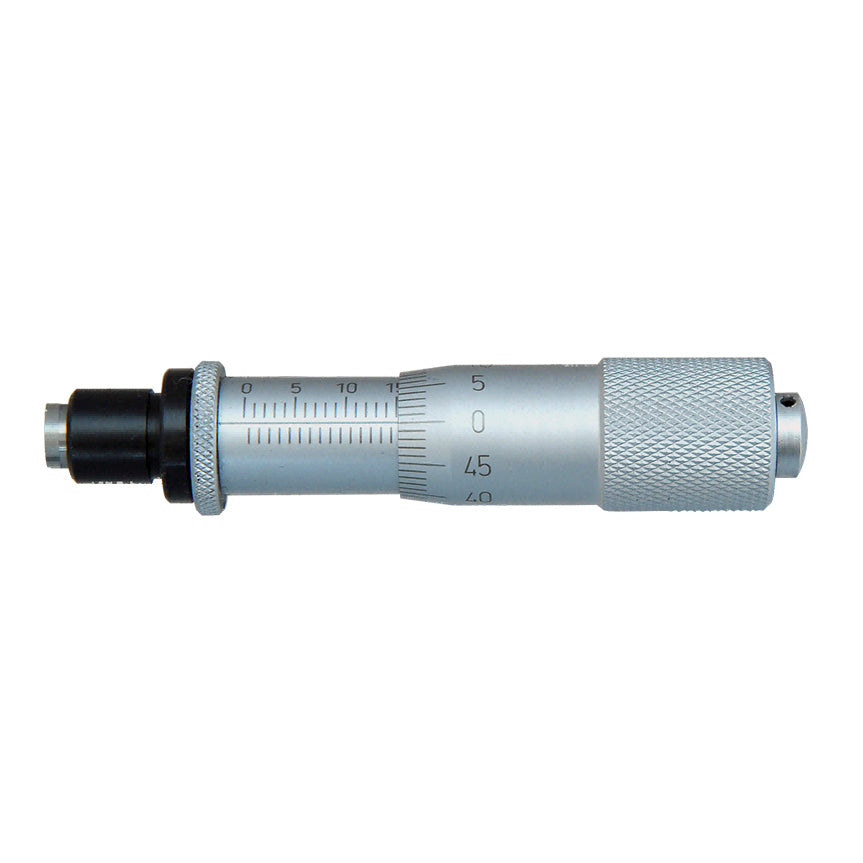

| 0709-050 | 0-15mm | 0.004mm | Flat measuring surface | usually |
| 0719-050 | 0-15mm | 0.004mm | Ball measuring surface | usually |
| 0709-350 | 0-15mm | 0.004mm | Flat measuring surface | With mounting nut |
| 0719-350 | 0-15mm | 0.004mm | Ball measuring surface | With mounting nut |
Dimensions (0709-050)
Dimensions (0709-350)
