Description
Measurement parameters
Part Number |
Measuring range |
Accuracy |
Model
|
usually |

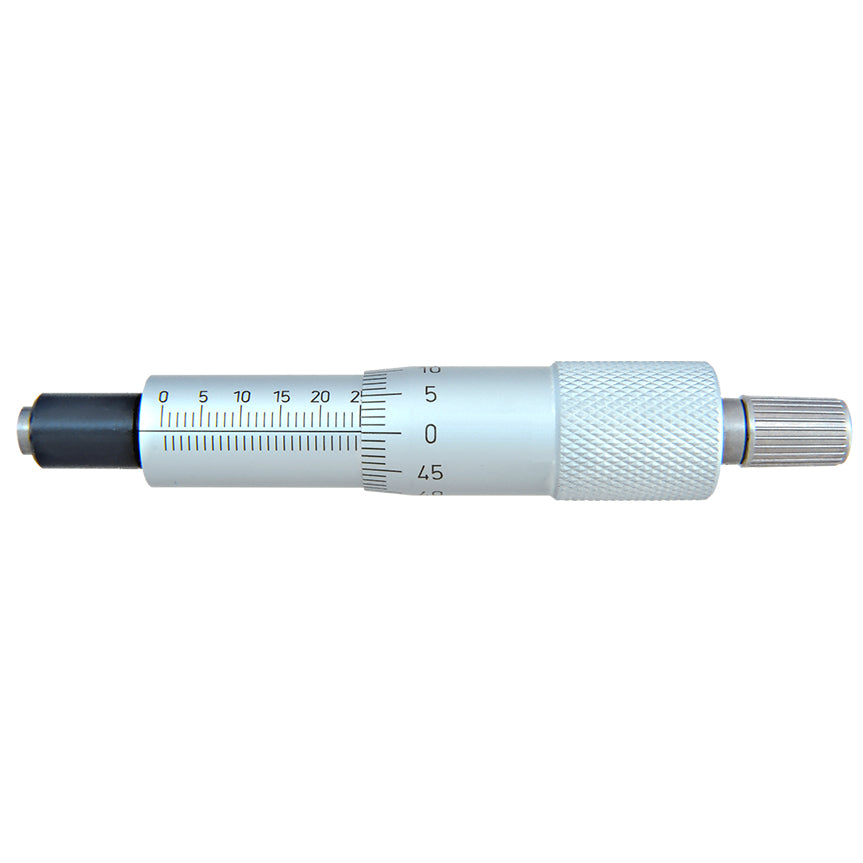

0803-010 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
0813-010 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
0803-020 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Friction force measurement |
0813-020 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Friction force measurement |
0803-030 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
0813-030 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
With mounting nut |
0803-310 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
0813-310 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
0803-320 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Friction force measurement |
0813-320 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Friction force measurement |
0803-330 |
0-25mm |
0.003mm |
Carbide flat measuring surface |
Ratchet force measurement |
0813-330 |
0-25mm |
0.003mm |
Carbide ball measuring surface |
Ratchet force measurement |
Dimensions (0803-010)
Dimensions (0803-310)
Dimensional drawing (0803-020/0803-030)
Dimensions (0803-320/0803-330)
