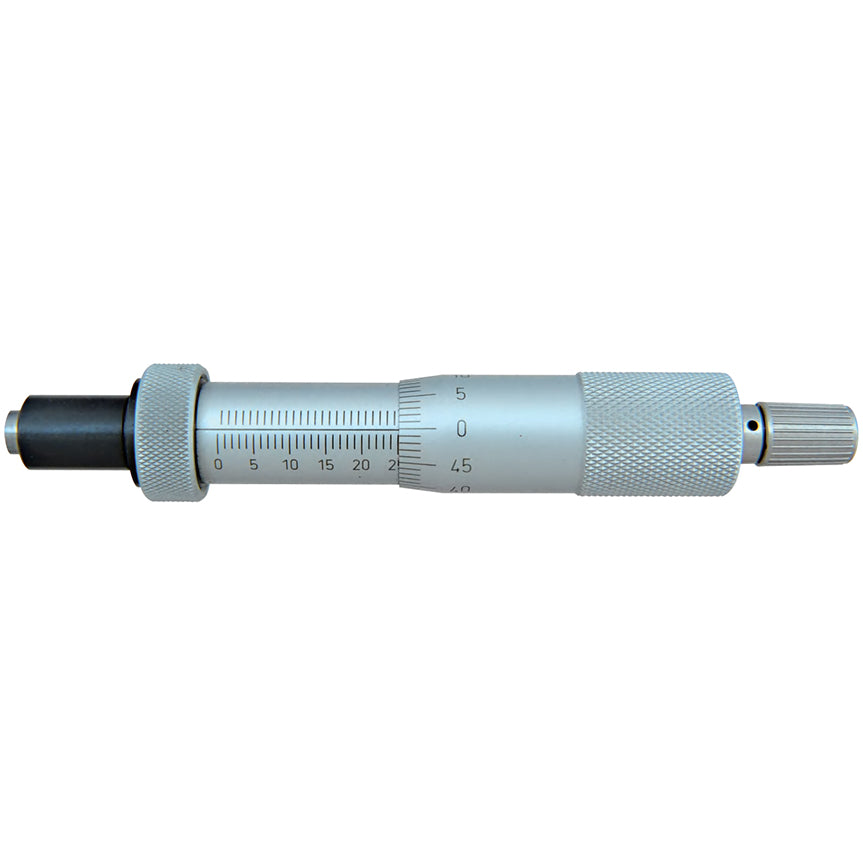

0903-010 Micrometer Head

0903-010 Micrometer Head

$149.00
$149.00
Sale Sold out

SKU:

Free Shipping

Free standard shipping on orders over 9.00 $

Return Policy

Returns within 30 days of receiving the item, as long as products are in their original condition, unused, and in the original packaging. Refunds or exchanges are available once the return is processed, with some exceptions based on the item’s condition and category.

MORE
View full details

Description

Measurement parameters

Part Number Measuring range Accuracy Model
usually
0903-010 0-25mm 0.003mm Carbide flat measuring surface Ratchet force measurement
0913-010 0-25mm 0.003mm Carbide ball measuring surface Ratchet force measurement
0903-020 0-25mm 0.003mm Carbide flat measuring surface Friction force measurement
0913-020 0-25mm 0.003mm Carbide ball measuring surface Friction force measurement
0903-030 0-25mm 0.003mm Carbide flat measuring surface Ratchet force measurement
0913-030 0-25mm 0.003mm Carbide ball measuring surface Ratchet force measurement
With mounting nut
0903-310 0-25mm 0.003mm Carbide flat measuring surface Ratchet force measurement
0913-310 0-25mm 0.003mm Carbide ball measuring surface Ratchet force measurement
0903-320 0-25mm 0.003mm Carbide flat measuring surface Friction force measurement
0913-320 0-25mm 0.003mm Carbide ball measuring surface Friction force measurement
0903-330 0-25mm 0.003mm Carbide flat measuring surface Ratchet force measurement
0913-330 0-25mm 0.003mm Carbide ball measuring surface Ratchet force measurement

Dimensional drawing (0903-010)

Enterprise WeChat screenshot_17035638585884

Dimensions (0903-310)

Enterprise WeChat screenshot_17035638685976


Dimensional drawing (0903-020/0903-030)

Enterprise WeChat screenshot_17035638846972

Dimensional drawing (0903-320/0903-330)

Enterprise WeChat screenshot_17035639045426
