Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Resolution |
| Micrometer head stroke: 25mm; Screw pitch: 0.5mm |

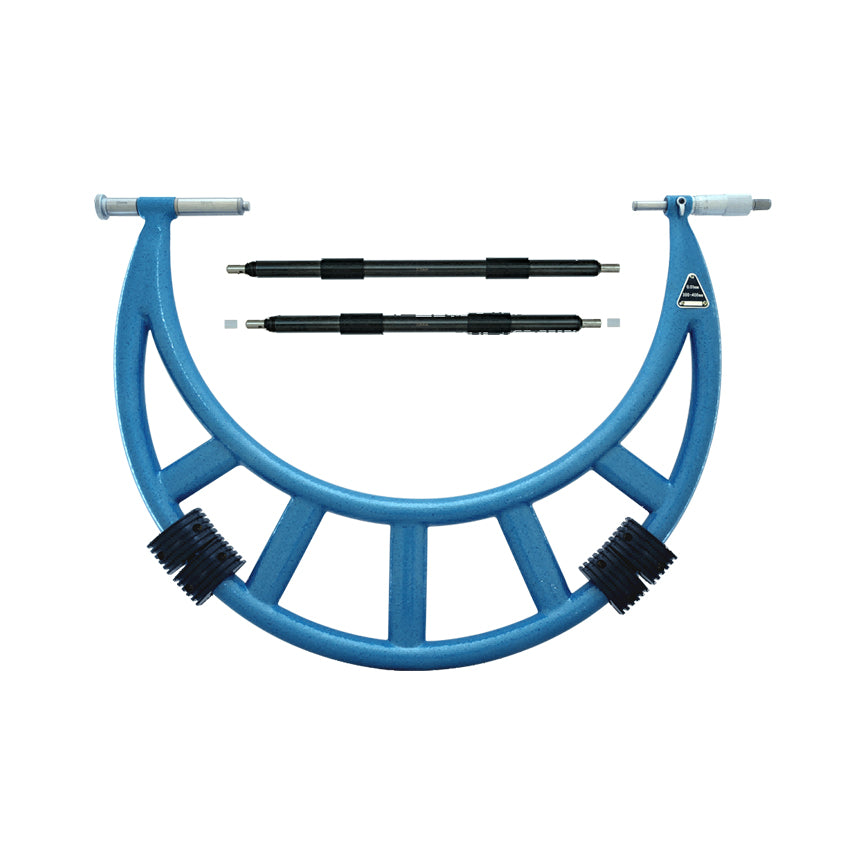

| 104-13-000 |
300-400mm |
0.011mm |
0.01mm |
| 104-14-000 |
400-500mm |
0.013mm |
0.01mm |
| 104-15-000 |
500-600mm |
0.015mm |
0.01mm |
| 104-16-000 |
600-700mm |
0.016mm |
0.01mm |
| 104-17-000 |
700-800mm |
0.018mm |
0.01mm |
| 104-18-000 |
800-900mm |
0.020mm |
0.01mm |
| 104-19-000 |
900-1000mm |
0.020mm |
0.01mm |
| Micrometer head stroke: 50mm; Screw pitch: 1mm |
| 104-20-000 |
1000-1200mm |
0.020mm |
0.01mm |
| 104-21-000 |
1200-1400mm |
0.024mm |
0.01mm |
| 104-22-000 |
1400-1600mm |
0.028mm |
0.01mm |
| 104-23-000 |
1600-1800mm |
0.031mm |
0.01mm |
| 104-24-000 |
1800-2000mm |
0.034mm |
0.01mm |
| 104-25-000 |
2000-2200mm |
0.040mm |
0.01mm |
| 104-26-000 |
2200-2400mm |
0.044mm |
0.01mm |
| 104-27-000 |
2400-2600mm |
0.048mm |
0.01mm |
| 104-28-000 |
2600-2800mm |
0.052mm |
0.01mm |
| 104-29-000 |
2800-3000mm |
0.056mm |
0.01mm |
Dimensions
Main dimensions:
| Measuring range |
A |
L |
C |
| 300-400mm |
225mm |
414mm |
F24 |
| 400-500mm |
275mm |
514mm |
F24 |
| 500-600mm |
325mm |
614mm |
F26 |
| 600-700mm |
375mm |
714mm |
F26 |
| 700-800mm |
430mm |
814mm |
F32 |
| 800-900mm |
480mm |
914mm |
F32 |
| 900-1000mm |
530mm |
1014mm |
F32 |
