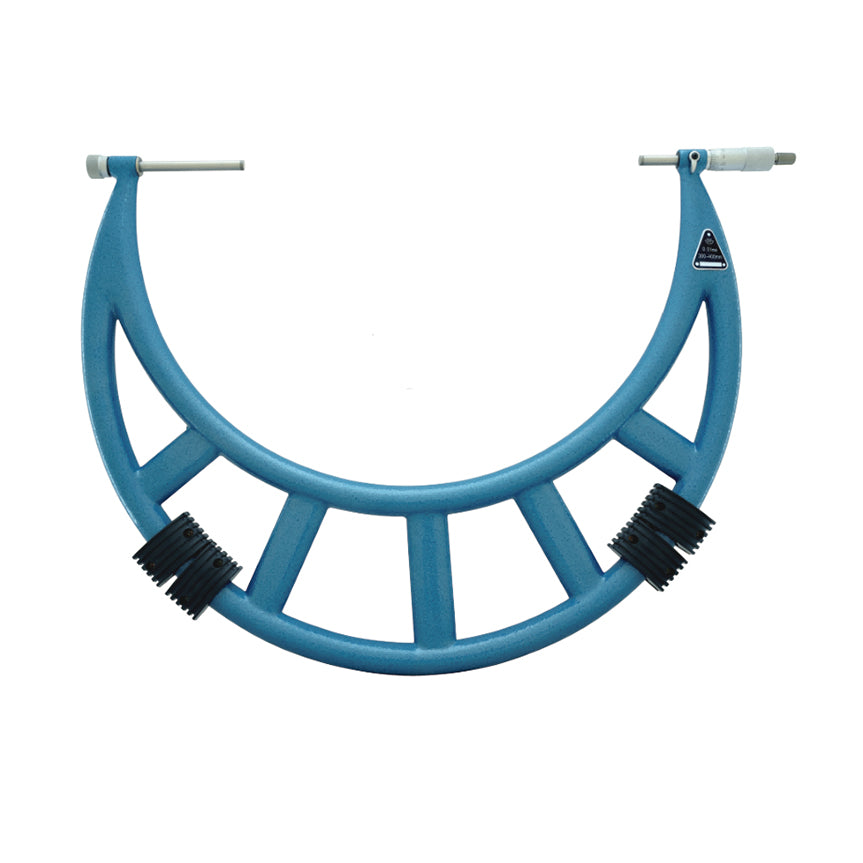

Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Steel pipe diameter |
| 104-13-400 |
300-400mm |
0.011mm |
F24 |
| 104-14-400 |
400-500mm |
0.013mm |
F24 |
| 104-15-400 |
500-600mm |
0.015mm |
F26 |
| 104-16-400 |
600-700mm |
0.016mm |
F26 |
| 104-17-400 |
700-800mm |
0.018mm |
F32 |
| 104-18-400 |
800-900mm |
0.020mm |
F32 |
| 104-19-400 |
900-1000mm |
0.020mm |
F32 |
| 104-63-400 |
300-450mm |
0.011mm |
F24 |
| 104-64-400 |
450-600mm |
0.015mm |
F26 |
| 104-65-400 |
600-750mm |
0.016mm |
F32 |
| 104-66-400 |
750-900mm |
0.020mm |
F32 |
| 104-67-400 |
900-1050mm |
0.021mm |
F32 |
Dimensions
Main size: 104-1X-400
Measuring range
|
A |
L |
Anvil |
Pair of columns |
| 300-400mm |
224mm |
409mm |
4 |
2 |
| 400-500mm |
275mm |
509mm |
4 |
2 |
| 500-600mm |
321mm |
609mm |
4 |
2 |
| 600-700mm |
371mm |
709mm |
4 |
2 |
| 700-800mm |
426mm |
809mm |
4 |
2 |
| 800-900mm |
476mm |
909mm |
4 |
2 |
| 900-1000mm |
526mm |
1009mm |
4 |
2 |
Main size: 104-6X-400
| Measuring range |
A |
L |
Anvil |
Pair of columns |
| 300-450mm |
250mm |
459mm |
6 |
6 |
| 450-600mm |
321mm |
609mm |
6 |
6 |
| 600-750mm |
401mm |
759mm |
6 |
6 |
| 750-900mm |
476mm |
909mm |
6 |
6 |
| 900-1050mm |
551mm |
1059mm |
6 |
6 |
Interchangeable anvil and column
