Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Resolution |
| 108-01-030 |
0-25mm |
0.004mm |
0.01mm |
| 108-02-030 |
25-50mm |
0.004mm |
0.01mm |
| 108-03-030 |
50-75mm |
0.005mm |
0.01mm |
| 108-04-030 |
75-100mm |
0.005mm |
0.01mm |
Dimensions
Main dimensions
| Measuring range |
A |
B |
L |
| 0-25mm |
6mm |
24mm |
32mm |
| 25-50mm |
8mm |
32mm |
57mm |
| 50-75mm |
8mm |
45mm |
82mm |
| 75-100mm |
8mm |
57mm |
107mm |

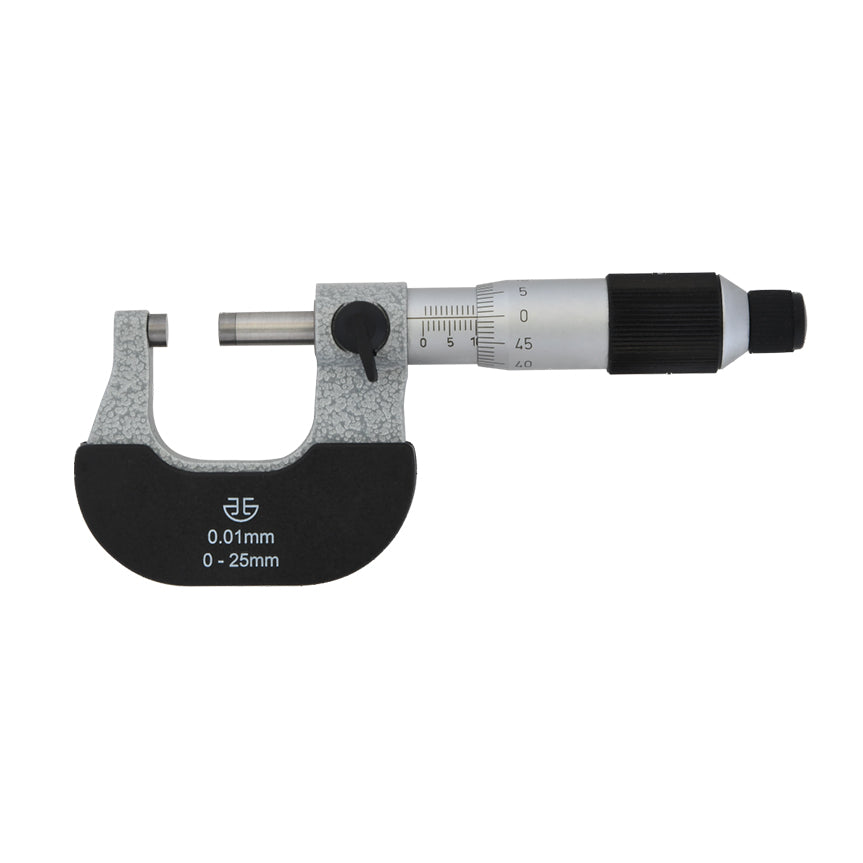

Non-magnetic outside micrometer measurement diagram
Non-magnetic outside micrometer measurement diagram
