Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Resolution |
| 132-01-850 |
0-25mm |
±0.002mm |
0.001mm |
| 132-02-850 |
25-50mm |
±0.002mm |
0.001mm |
| 132-03-850 |
50-75mm |
±0.003mm |
0.001mm |
| 132-04-850 |
75-100mm |
±0.003mm |
0.001mm |
| 132-05-850 |
100-125mm |
±0.003mm |
0.001mm |
| 132-06-850 |
125-150mm |
±0.003mm |
0.001mm |
| 132-07-850 |
150-175mm |
±0.004mm |
0.001mm |
| 132-08-850 |
175-200mm |
±0.004mm |
0.001mm |
| 200mm-300mm is horseshoe ruler |
| 132-09-850 |
200-225mm |
±0.004mm |
0.001mm |
| 132-10-850 |
225-250mm |
±0.004mm |
0.001mm |
| 132-11-850 |
250-275mm |
±0.005mm |
0.001mm |
| 132-12-850 |
275-300mm |
±0.005mm |
0.001mm |

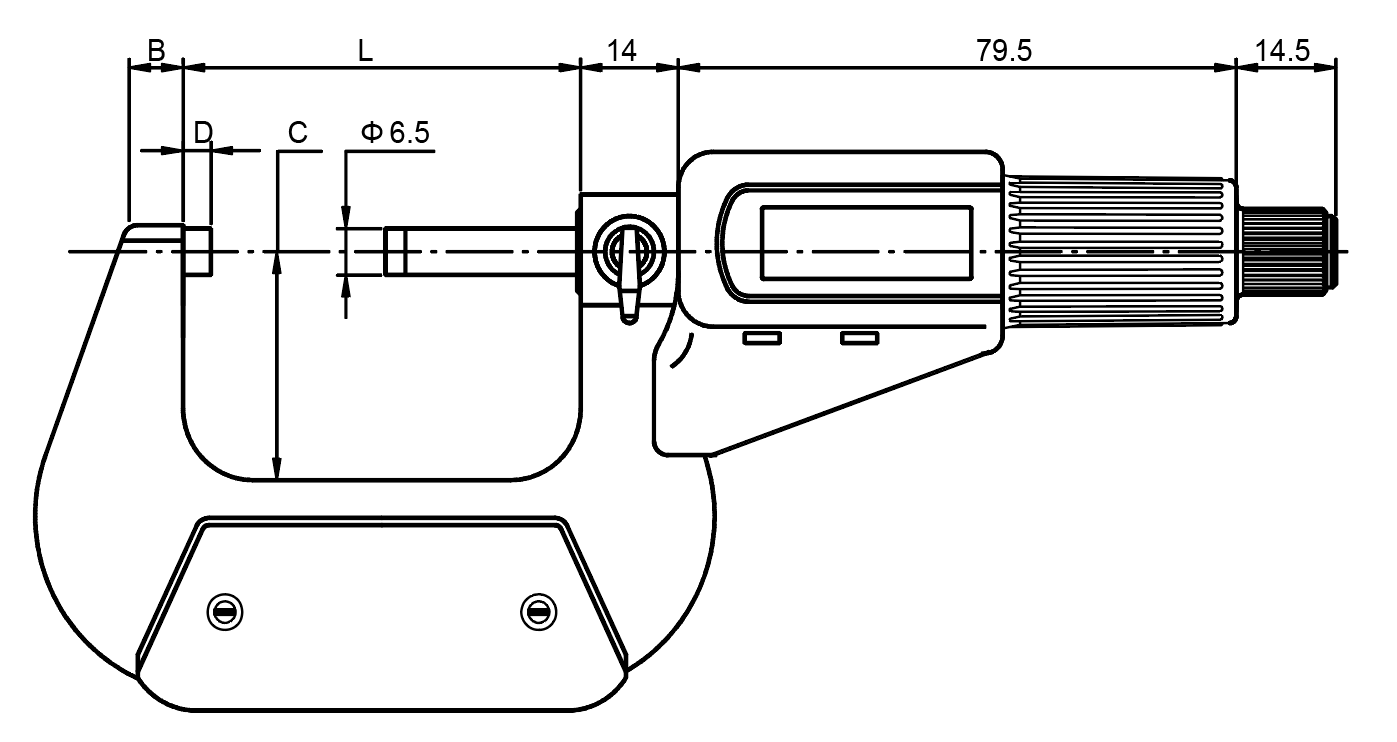

Dimensions
Main dimensions
| Measuring range |
C |
L |
B |
D |
| 0-25mm |
24mm |
32mm |
6mm |
3.0mm |
| 25-50mm |
32mm |
57mm |
8mm |
3.0mm |
| 50-75mm |
45mm |
82mm |
8mm |
3.0mm |
| 75-100mm |
57mm |
107mm |
10mm |
3.0mm |
| 100-125mm |
70mm |
133mm |
10mm |
3.0mm |
| 125-150mm |
82mm |
158mm |
10mm |
3.0mm |
| 150-175mm |
95mm |
183mm |
12mm |
5.5mm |
| 175-200mm |
107mm |
209mm |
12mm |
5.5mm |
|
200mm-300mm is horseshoe ruler
|
| 200-225mm |
129.5mm |
234.2mm |
19.5mm |
6mm |
| 225-250mm |
142mm |
259.6mm |
19.5mm |
6mm |
| 250-275mm |
155.0mm |
285mm |
19.5mm |
6mm |
| 275-300mm |
167.5mm |
310.4mm |
19.5mm |
6mm |
Function
| On/off key, automatic power off |
√ |
| Absolute/relative measurement mode switching |
√ |
| Metric/Imperial measurement mode switch |
√ |
| Initial value setting |
√ |
| One CR2032 battery |
√ |
