Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Resolution |
| 133-01-658 |
0-25mm |
±0.002mm |
0.001mm |
| 133-02-658 |
25-50mm |
±0.002mm |
0.001mm |
| 133-03-658 |
50-75mm |
±0.003mm |
0.001mm |
| 133-04-658 |
75-100mm |
±0.003mm |
0.001mm |
| 133-05-658 |
100-125mm |
±0.003mm |
0.001mm |
| 133-06-658 |
125-150mm |
±0.003mm |
0.001mm |
| 133-07-658 |
150-175mm |
±0.004mm |
0.001mm |
| 133-08-658 |
175-200mm |
±0.004mm |
0.001mm |
| 133-09-658 |
200-225mm |
±0.004mm |
0.001mm |
| 133-10-658 |
225-250mm |
±0.004mm |
0.001mm |
| 133-11-658 |
250-275mm |
±0.005mm |
0.001mm |
| 133-12-658 |
275-300mm |
±0.005mm |
0.001mm |

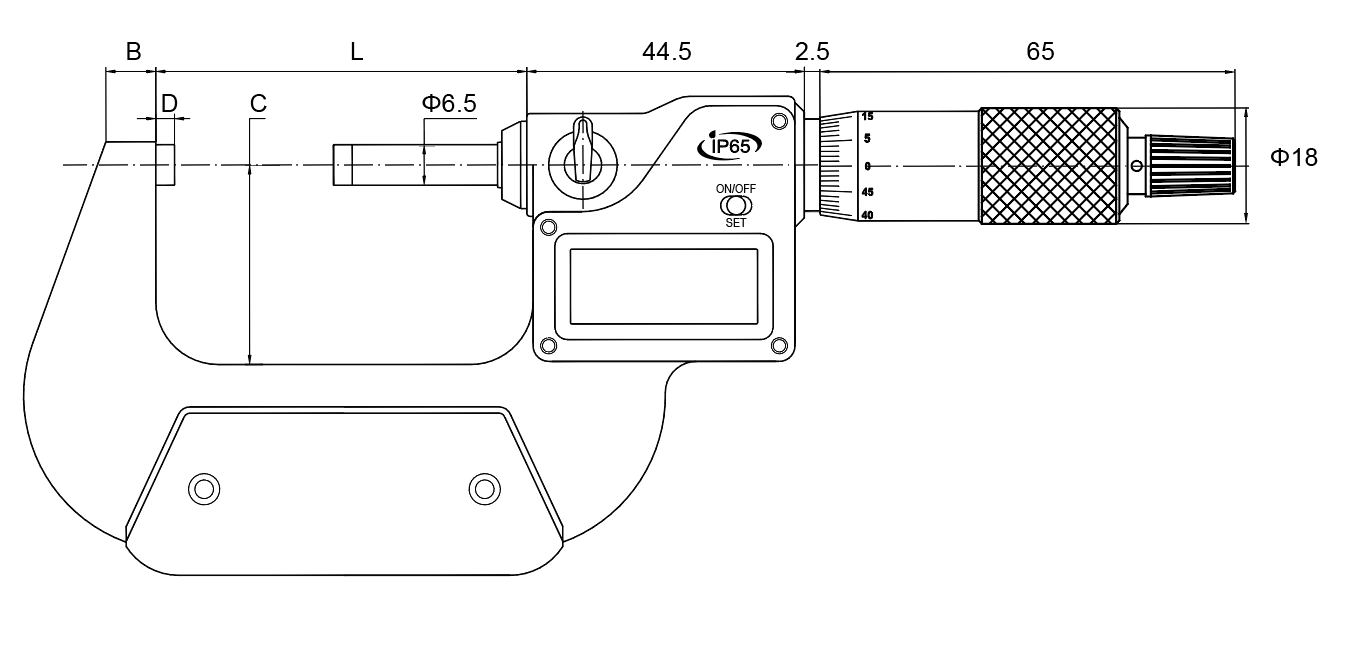

Dimensions
Main dimensions
| Measuring range |
C |
L |
B |
D |
| 0-25mm |
25mm |
34.5mm |
6mm |
3.0mm |
| 25-50mm |
32.0mm |
59.5mm |
8mm |
3.0mm |
| 50-75mm |
44.5mm |
84.5mm |
8mm |
3.0mm |
| 75-100mm |
57.0mm |
109.5mm |
8mm |
3.0mm |
| 100-125mm |
70.0mm |
135.0mm |
10mm |
3.0mm |
| 125-150mm |
82.0mm |
160.5mm |
10mm |
3.0mm |
| 150-175mm |
94.5mm |
186.0mm |
12mm |
5.5mm |
| 175-200mm |
107.0mm |
211.5mm |
12mm |
5.5mm |
| 200-225mm |
129.5mm |
236.0mm |
23mm |
5.5mm |
| 225-250mm |
142.5mm |
261.5mm |
23mm |
5.5mm |
| 250-275mm |
155.0mm |
287.0mm |
23mm |
5.5mm |
| 275-300mm |
167.5mm |
312.5mm |
23mm |
5.5mm |
Function
| Absolute measurement initial value setting key |
√ |
| battery model |
CR2032 |
| Automatic power-off |
√ |
