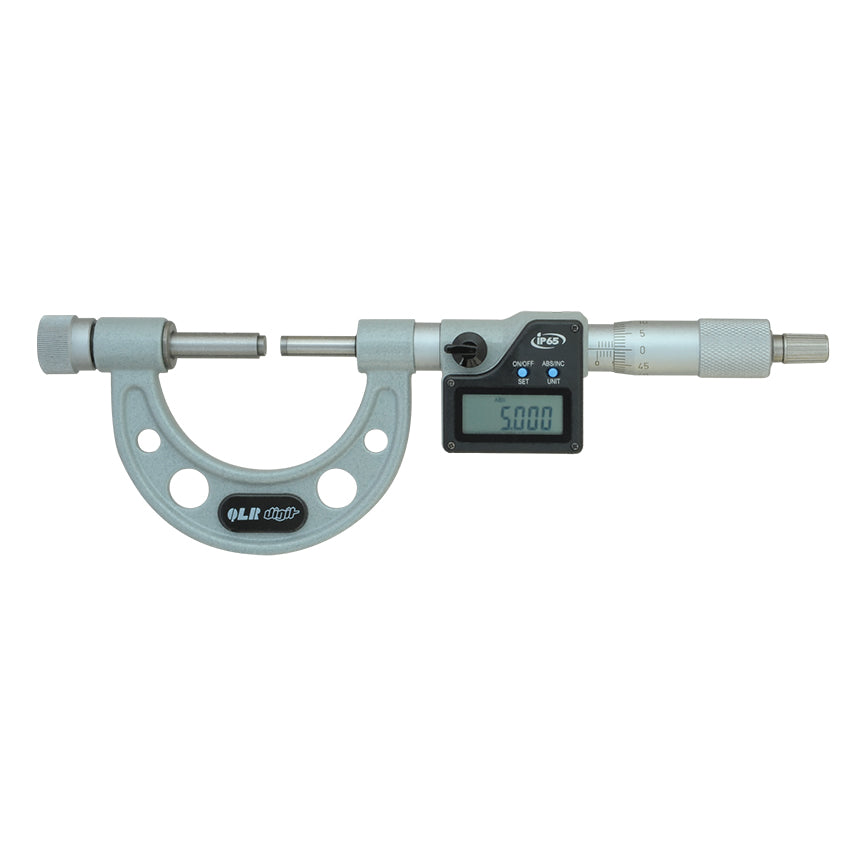

Description
Measurement parameters
| Part Number |
Measuring range
|
Accuracy |
| 146-01-650 |
0-50mm |
±0.002mm |
| 146-02-650 |
50-100mm |
±0.003mm |
| 146-10-650 |
0-100mm |
±0.003mm |
| 146-11-650 |
100-200mm |
±0.004mm |
| 146-12-650 |
200-300mm |
±0.005mm |
| 146-13-650 |
300-400mm |
±0.006mm |
| 146-14-650 |
400-500mm |
±0.007mm |
| 146-15-650 |
500-600mm |
±0.007mm |
| 146-16-650 |
600-700mm |
±0.008mm |
| 146-17-650 |
700-800mm |
±0.009mm |
| 146-18-650 |
800-900mm |
±0.010mm |
| 146-19-650 |
900-1000mm |
±0.010mm |
| 146-61-650 |
0-150mm |
±0.003mm |
| 146-62-650 |
150-300mm |
±0.005mm |
| 146-63-650 |
300-450mm |
±0.006mm |
| 146-64-650 |
450-600mm |
±0.007mm |
| 146-65-650 |
600-750mm |
±0.009mm |
| 146-66-650 |
750-900mm |
±0.010mm |
| 146-67-650 |
900-1050mm |
±0.010mm |
Dimensions

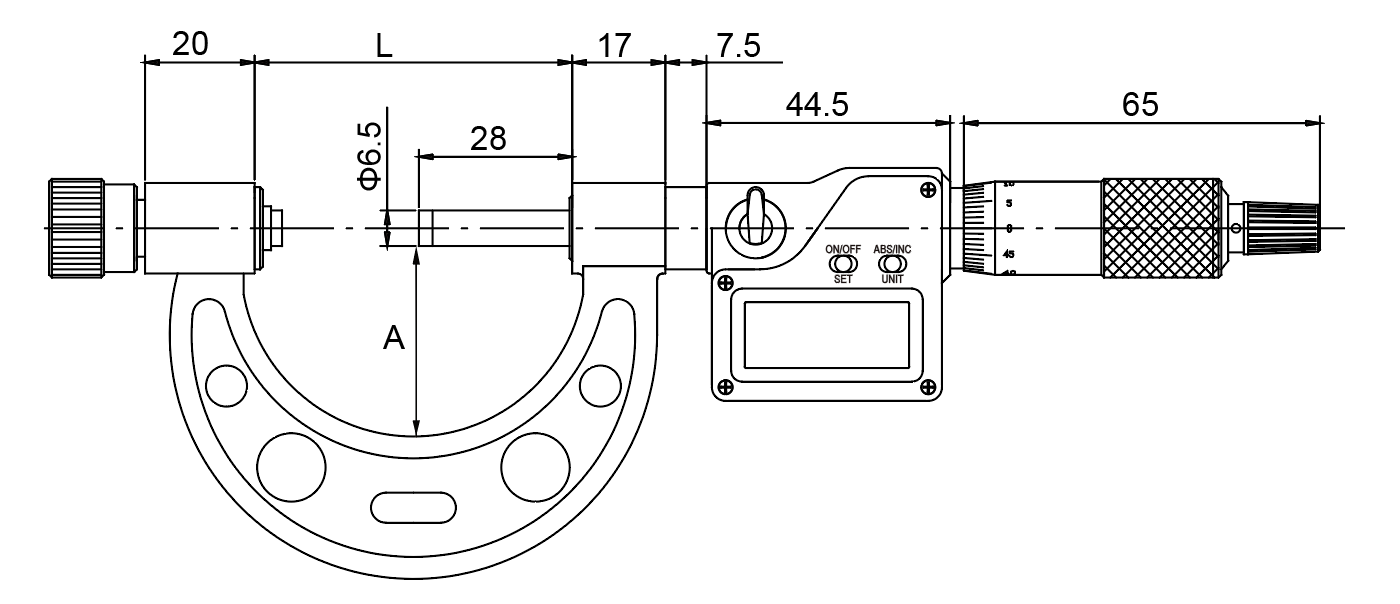

Main dimensions
| Measuring range |
A |
L |
Anvil |
Pair of columns |
| 0-50mm |
35mm |
58mm |
2 |
1 |
| 50-100mm |
57mm |
108mm |
2 |
2 |
| 0-100mm |
57mm |
108mm |
4 |
3 |
| 100-200mm |
114mm |
208mm |
4 |
4 |
| 200-300mm |
165mm |
308mm |
4 |
4 |
| 0-150mm |
82mm |
158mm |
6 |
5 |
| 150-300mm |
165mm |
308mm |
6 |
6 |

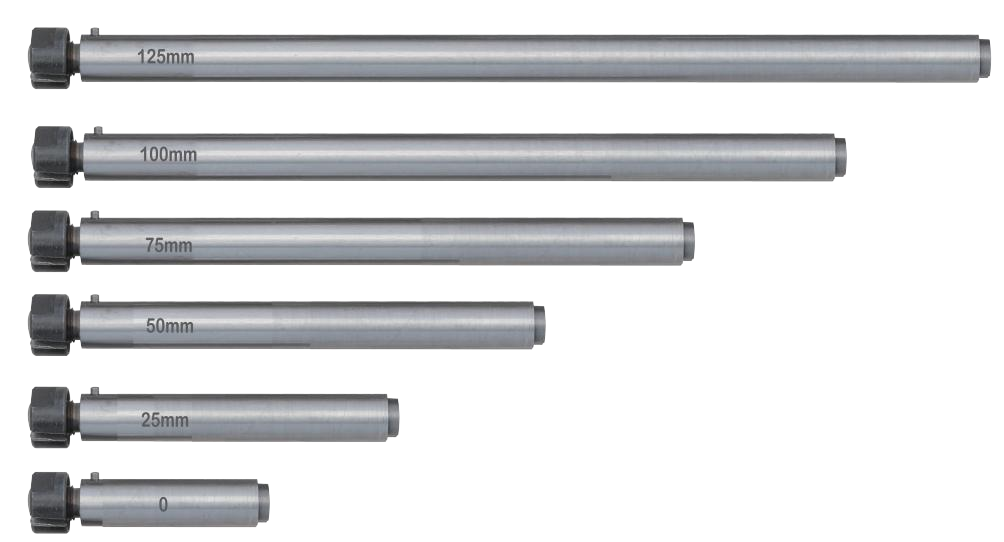

Interchangeable anvil

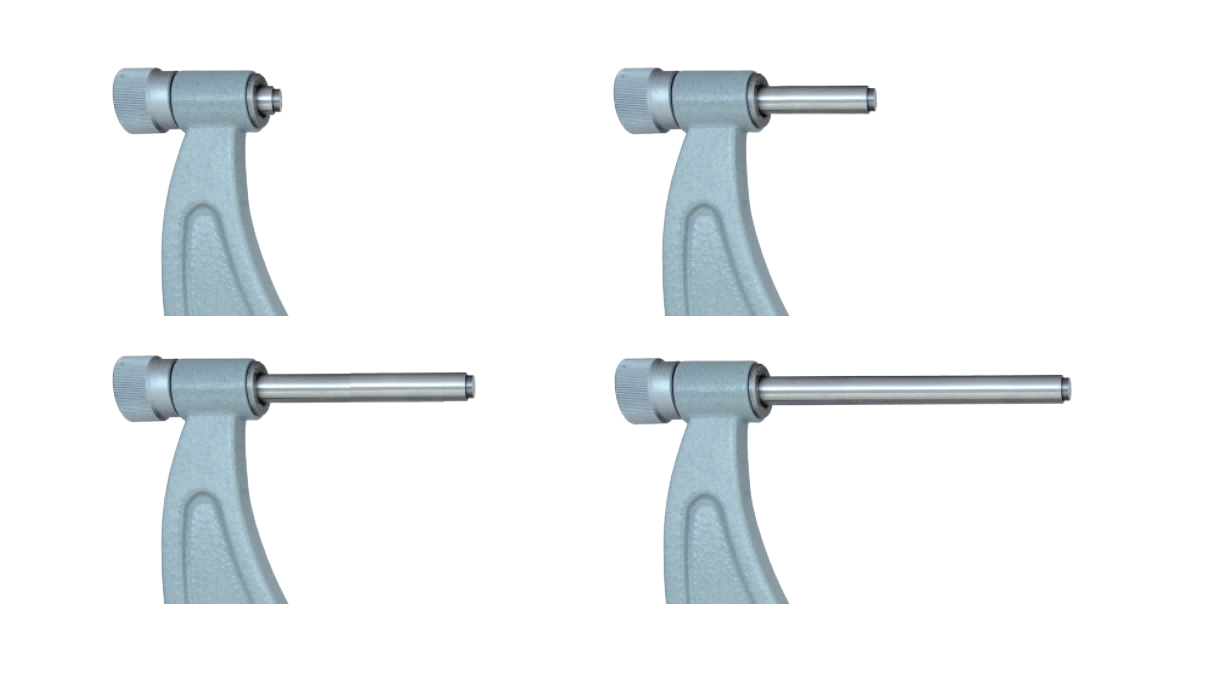

4 states of standard sets

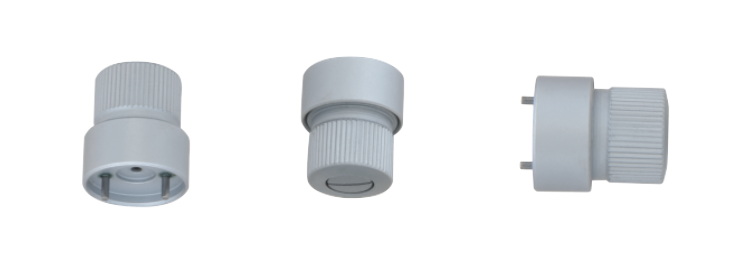

Fastening anvil constant force device
