Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Resolution |

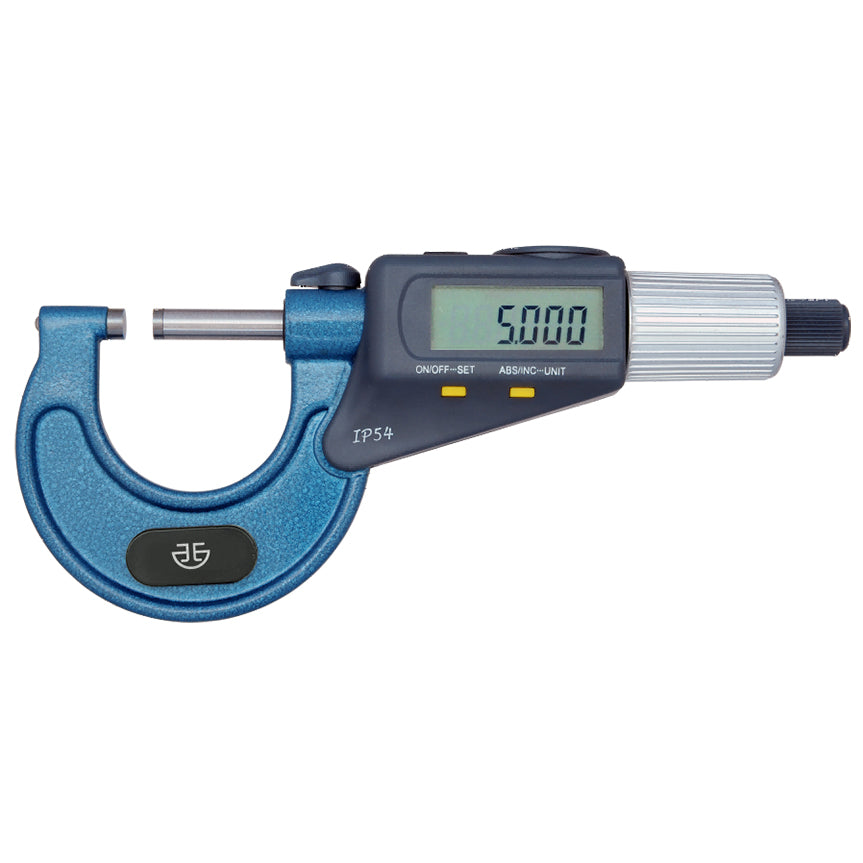

| 193-01-630 |
0-30mm |
±0.002mm |
0.001mm |
| 193-02-630 |
20-50mm |
±0.002mm |
0.001mm |
| 193-03-630 |
45-75mm |
±0.003mm |
0.001mm |
| 193-04-630 |
95-125mm |
±0.003mm |
0.001mm |
| 193-05-630 |
120-150mm |
±0.003mm |
0.001mm |
| 193-06-630 |
145-175mm |
±0.003mm |
0.001mm |
| 193-07-630 |
170-200mm |
±0.004mm |
0.001mm |
| 193-08-630 |
195-225mm |
±0.004mm |
0.001mm |
| 193-09-630 |
220-250mm |
±0.004mm |
0.001mm |
| 193-10-630 |
245-275mm |
±0.004mm |
0.001mm |
| 193-11-630 |
270-300mm |
±0.005mm |
0.001mm |
| 193-12-630 |
275-300mm |
±0.005mm |
0.001mm |
Dimensions
Main dimensions
| Measuring range |
A |
B |
L |
D |
| 0-30mm |
9mm |
35mm |
37mm |
3.0mm |
| 20-50mm |
14mm |
38mm |
57mm |
3.0mm |
| 45-75mm |
15mm |
49mm |
82mm |
3.0mm |
| 95-125mm |
15mm |
60mm |
107mm |
3.0mm |
| 120-150mm |
16mm |
73mm |
133mm |
3.0mm |
| 145-175mm |
16mm |
85mm |
158mm |
3.0mm |
| 170-200mm |
19mm |
104mm |
183mm |
5.5mm |
| 195-225mm |
19mm |
117mm |
209mm |
5.5mm |
| 220-250mm |
19mm |
130mm |
234mm |
5.5mm |
| 245-275mm |
19mm |
142mm |
260mm |
5.5mm |
| 270-300mm |
19mm |
155mm |
285mm |
5.5mm |
| 275-300mm |
19mm |
168mm |
310mm |
5.5mm |
Function
| power button |
√ |
| Absolute/relative measurement mode switching |
√ |
| Metric/Imperial measurement mode switch |
√ |
| Absolute measurement initial value setting key |
√ |
| Display direction adjustment keys |
√ |
| battery model |
CR2032 |
| Automatic power-off |
√ |
| RS232 output interface |
√ |
| Interface cable (optional) |
P1101 |
