Description
Measurement parameters
|
Part Number |
Measuring range | Accuracy | Measuring rod | Measuring rod diameter | Pointed shape | |||
|---|---|---|---|---|---|---|---|---|
| Flat probe | Ball probe | |||||||
| A=63.0mm | A=101.5mm | A=63.0mm | A=101.5mm | |||||
| 202-51-000 | 202-51-200 | 202-31-000 | 202-31-200 | 0-25mm | 0.004mm | 1 | Φ4.5mm | SR2.5-3mm |
| 202-52-000 | 202-52-200 | 202-32-000 | 202-32-200 | 0-50mm | 0.004mm | 2 | Φ4.5mm | SR2.5-3mm |
| 202-53-000 | 202-53-200 | 202-33-000 | 202-33-200 | 0-100mm | 0.005mm | 4 | Φ4.5mm | SR2.5-3mm |
| 202-54-000 | 202-54-200 | 202-34-000 | 202-34-200 | 0-150mm | 0.005mm | 6 | Φ4.5mm | SR2.5-3mm |
| 202-55-000 | 202-55-200 | 202-35-000 | 202-35-200 | 0-200mm | 0.006mm | 8 | Φ4.5mm | SR2.5-3mm |
| 202-56-000 | 202-56-200 | 202-36-000 | 202-36-200 | 0-300mm | 0.007mm | 12 | Φ4.5mm | SR2.5-3mm |

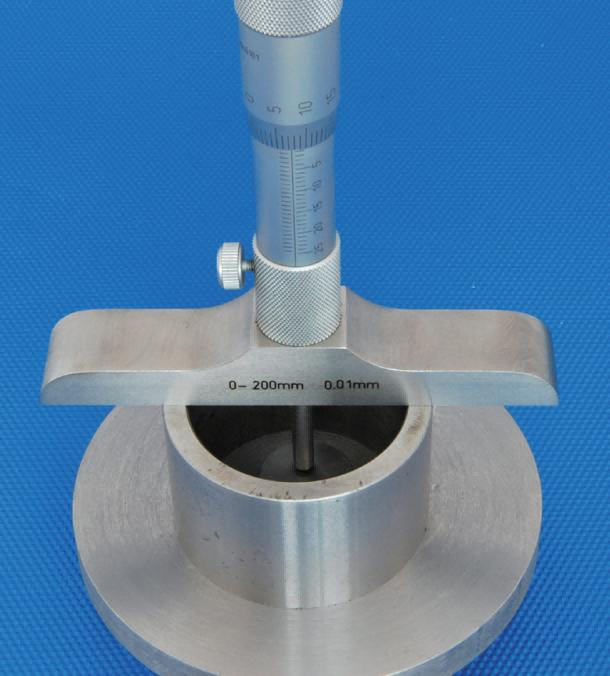

Measuring the depth of part holes
