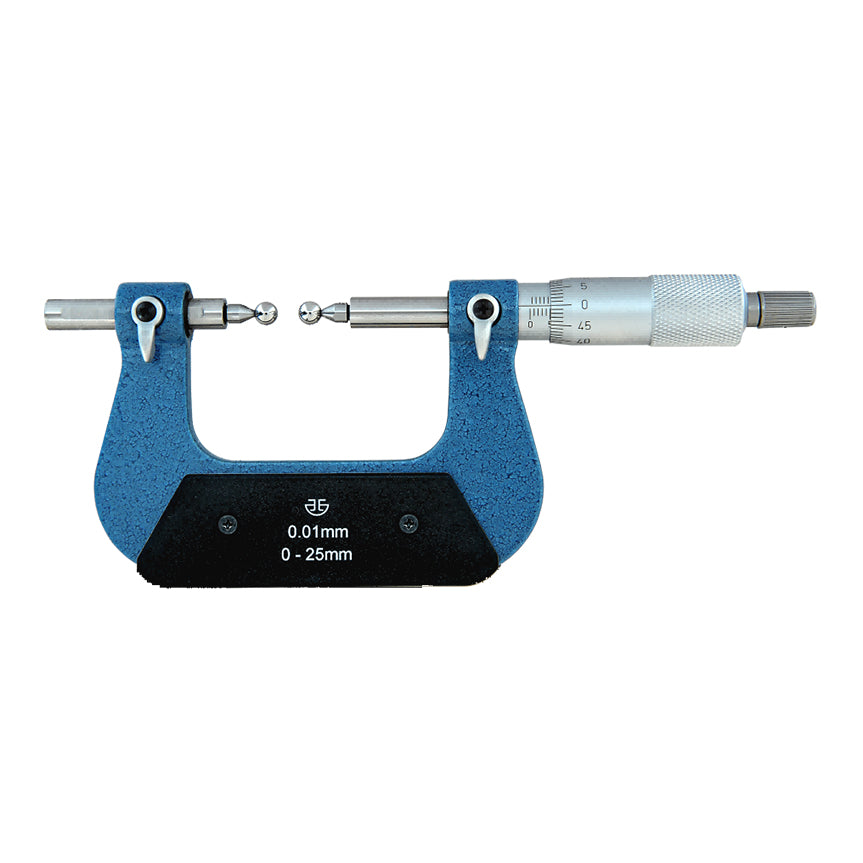

Description
Measurement parameters
| Part Number | Measuring range | Accuracy |
|---|---|---|
| Ratchet force measurement | ||
| 207-11-000 | 0-25mm | 0.004mm |
| 207-12-000 | 25-50mm | 0.004mm |
| 207-13-000 | 50-75mm | 0.005mm |
| 207-14-000 | 75-100mm | 0.005mm |
| 207-15-000 | 100-125mm | 0.006mm |
| 207-16-000 | 125-150mm | 0.006mm |
| 207-17-000 | 150-175mm | 0.007mm |
| 207-18-000 | 175-200mm | 0.007mm |
| 207-19-000 | 200-225mm | 0.008mm |
| 207-20-000 | 225-250mm | 0.008mm |
| 207-21-000 | 250-275mm | 0.009mm |
Probe

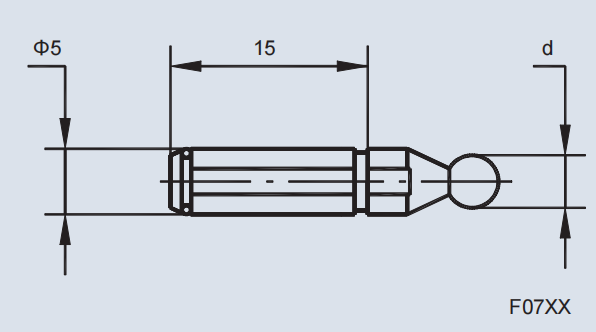

Dimensions

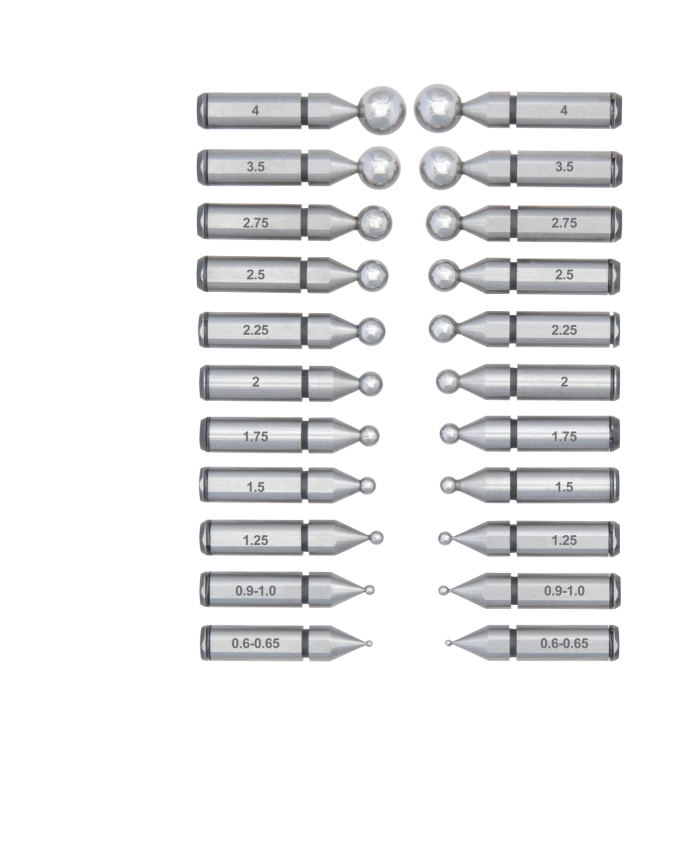

Interchangeable ball probe (optional)
| Part Number | Ball diameter | Gear module | Pitch |
|---|---|---|---|
| F0701 | Φ1mm | 0.6-0.65 | 45 |
| F0702 | Φ1.5mm | 0.9-1.0 | 28-26 |
| F0703 | Φ2.0mm | 1.25 | 22 |
| F0704 | Φ2.5mm | 1.5 | 17 |
| F0705 | Φ3.0mm | 1.75 | 15 |
| F0706 | Φ3.5mm | 2 | 13 |
| F0707 | Φ4.0mm | 2.25 | 11 |
| F0708 | Φ4.5mm | 2.5 | 10 |
| F0709 | Φ5.0mm | 2.75 | 9 |
| F0710 | Φ6.0mm | 3.5 | 7 |
| F0711 | Φ7.0mm | 4 | 6.5 |
| F0700 | Full set |
