Description
Measurement parameters
| Measuring range | Scale resolution | ||||
|---|---|---|---|---|---|
| ±0.04mm | 0.001mm |
| Part Number | Measuring range | Indicator accuracy | L | D | Parallelism |
|---|---|---|---|---|---|

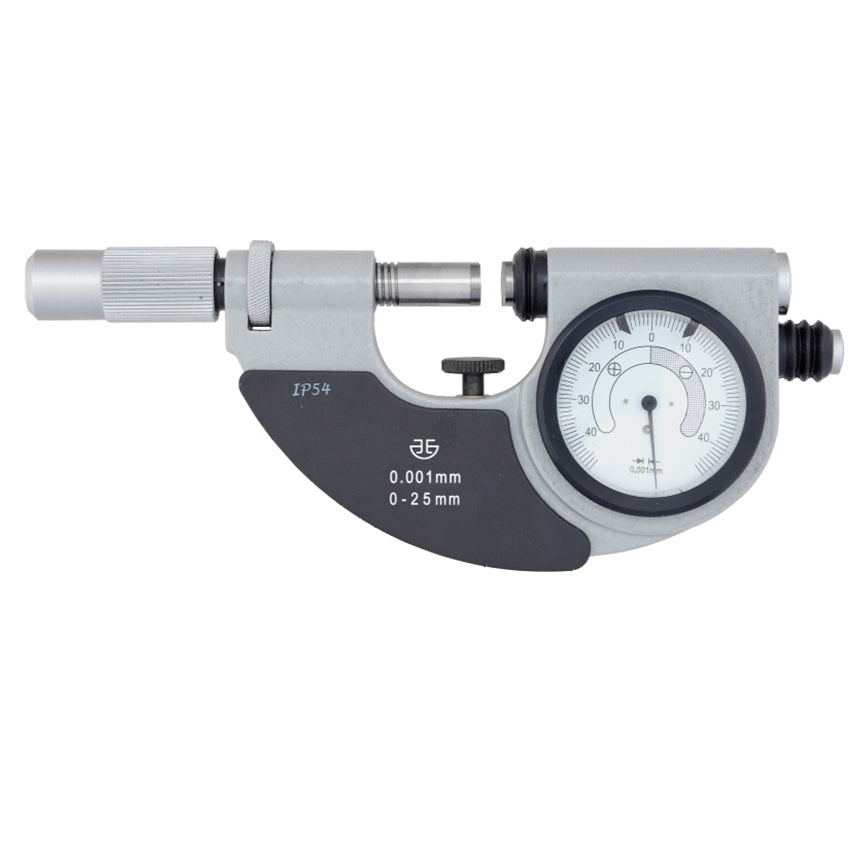

| 283-81-000 | 0-25mm | 0.001mm | 28.5mm | 25mm | 0.0009mm |
| 283-82-000 | 25-50mm | 0.001mm | 53.5mm | 35mm | 0.0009mm |
| 283-83-000 | 50-75mm | 0.001mm | 78.5mm | 47.5mm | 0.0012mm |
| 283-84-000 | 75-100mm | 0.001mm | 103.5mm | 60mm | 0.0012mm |
Dimensions
Measurement diagram of lever micrometer with dial
