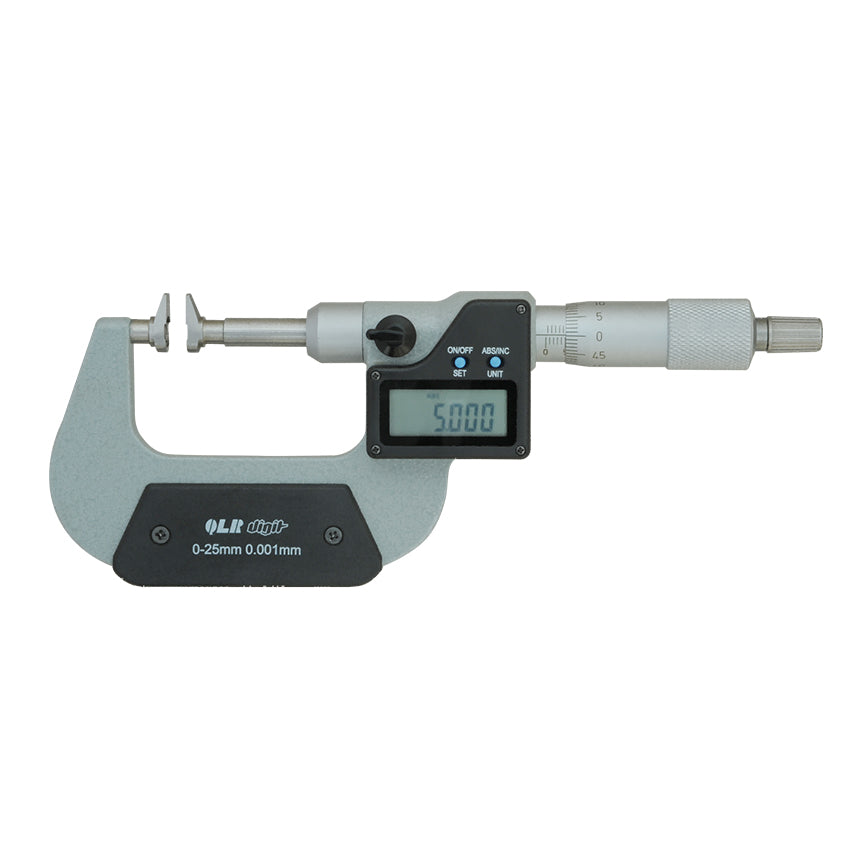

Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
D |
d |
| 241-01-450 |
0-25mm |
0.004mm |
R10mm |
Φ8mm |
| 241-02-450 |
25-50mm |
0.004mm |
R10mm |
Φ8mm |
| 241-03-450 |
50-75mm |
0.005mm |
R10mm |
Φ8mm |
| 241-04-450 |
75-100mm |
0.005mm |
R10mm |
Φ8mm |
| 241-05-450 |
100-125mm |
0.006mm |
R15mm |
Φ12mm |
| 241-06-450 |
125-150mm |
0.006mm |
R15mm |
Φ12mm |
| 241-07-450 |
150-175mm |
0.007mm |
R15mm |
Φ12mm |
| 241-08-450 |
175-200mm |
0.007mm |
R15mm |
Φ12mm |
Dimensions
Measuring the gear normal
Measuring step thickness
