Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
| 303-03-050 |
50-75mm |
0.005mm |
| 303-04-050 |
75-100mm |
0.005mm |
| 303-05-050 |
100-125mm |
0.006mm |
| 303-06-050 |
125-150mm |
0.006mm |

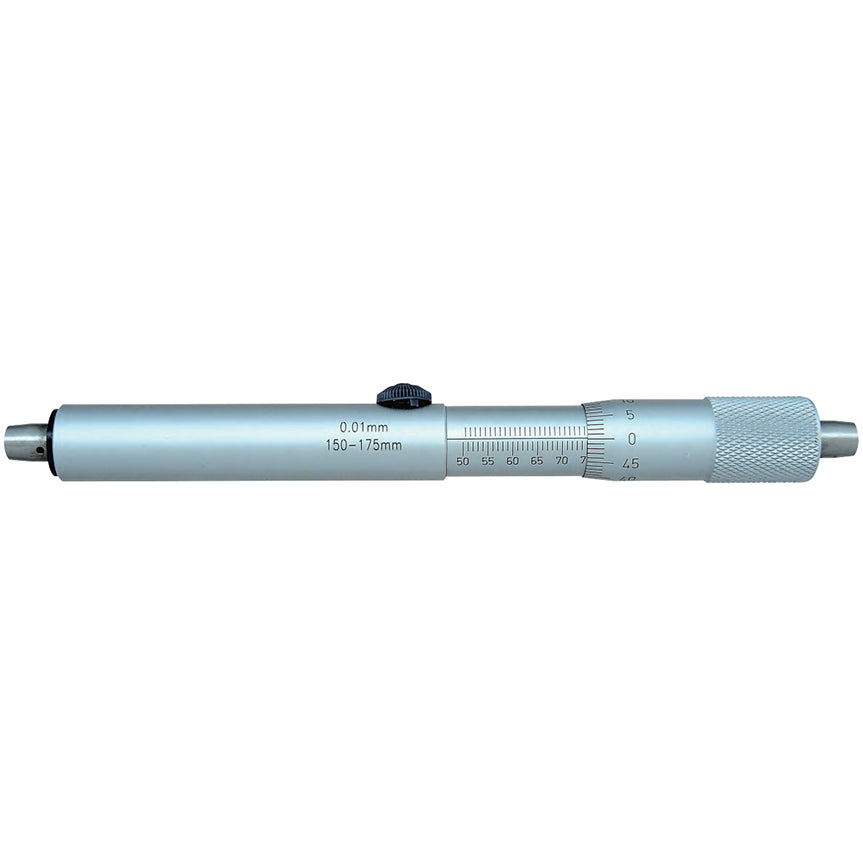

| 303-07-050 |
150-175mm |
0.007mm |
| 303-08-050 |
175-200mm |
0.007mm |
| 303-09-050 |
200-225mm |
0.008mm |
| 303-10-050 |
225-250mm |
0.008mm |
| 303-11-050 |
250-275mm |
0.009mm |
| 303-12-050 |
275-300mm |
0.009mm |
| 303-13-050 |
300-325mm |
0.009mm |
| 303-14-050 |
325-350mm |
0.009mm |
| 303-15-050 |
350-375mm |
0.010mm |
| 303-16-050 |
375-400mm |
0.010mm |
| 303-17-050 |
400-425mm |
0.010mm |
| 303-18-050 |
425-450mm |
0.010mm |
| 303-19-050 |
450-475mm |
0.011mm |
| 303-20-050 |
475-500mm |
0.011mm |
| 303-21-050 |
500-525mm |
0.011mm |
| 303-22-050 |
525-550mm |
0.011mm |
| 303-23-050 |
550-575mm |
0.011mm |
| 303-24-050 |
575-600mm |
0.012mm |
| 303-25-050 |
600-625mm |
0.012mm |
| 303-26-050 |
625-650mm |
0.012mm |
| 303-27-050 |
650-675mm |
0.013mm |
| 303-28-050 |
675-700mm |
0.013mm |
| 303-29-050 |
700-725mm |
0.013mm |
| 303-30-050 |
725-750mm |
0.014mm |
| 303-31-050 |
750-775mm |
0.014mm |
| 303-32-050 |
775-800mm |
0.014mm |
| 303-33-050 |
800-825mm |
0.015mm |
| 303-34-050 |
825-850mm |
0.015mm |
| 303-35-050 |
850-875mm |
0.015mm |
| 303-36-050 |
875-900mm |
0.016mm |
| 303-37-050 |
900-925mm |
0.016mm |
| 303-38-050 |
925-950mm |
0.016mm |
| 303-39-050 |
950-975mm |
0.017mm |
| 303-40-050 |
975-1000mm |
0.017mm |
Dimensional drawing (303-07-050)
Dimensional drawing (303-03-050)
