Description
Measurement parameters
| Part Number |
Measuring range |
Arbors |
| 312-00-060 |
150-175mm |
Micrometer Head |
| 312-01-060 |
150-1400mm |
25mm,50mm(2pcs),100mm,200mm,400mm(2pcs) |

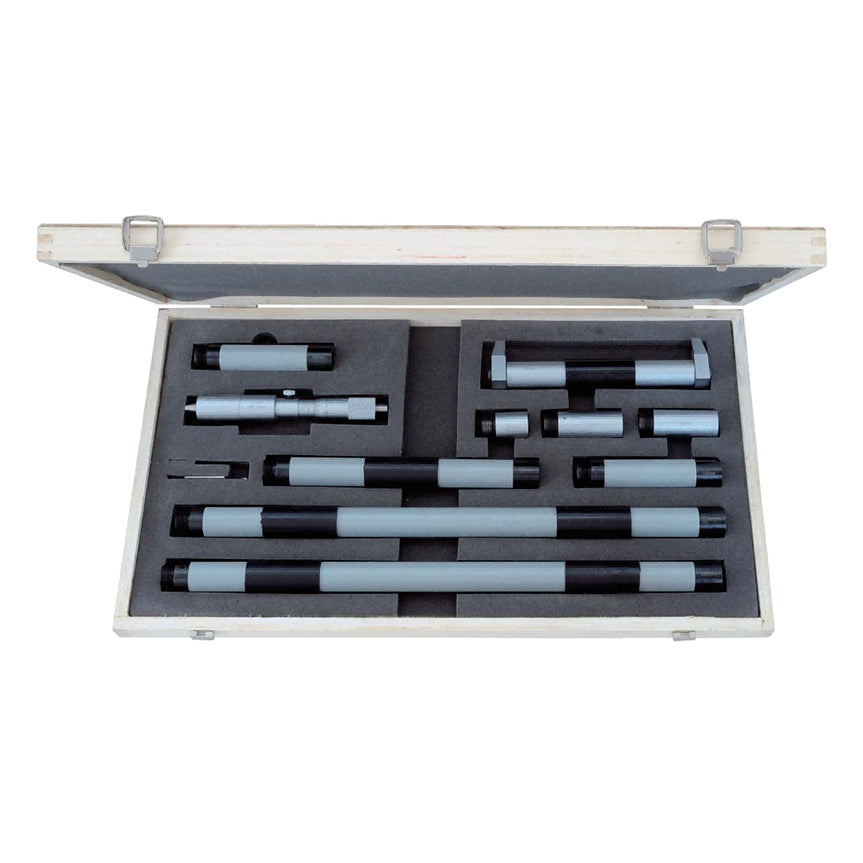

| 312-07-060 |
150-1500mm |
25mm,50mm(2pcs),100mm(2pcs),200mm,400mm(2pcs) |
| 312-02-060 |
150-2000mm |
25mm, 50mm (2 pieces), 100mm, 200mm (2 pieces), 400mm (3 pieces) |
| 312-03-060 |
150-2100mm |
25mm, 50mm (2 pieces), 100mm (2 pieces), 200mm (2 pieces), 400mm (3 pieces) |
Dimensional drawing (312-00-060)
Dimensional drawing (adapter)
