Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Calibration ring gauge |
L1 |
A |
Extension rod |
| Metallic color force measurement |
Metal black force gauge |
|
|
|
|
|
|
| 315-04-050 |
315-04-150 |
12-16mm |
0.004mm |
Φ16mm |
80mm |
0.5mm |
150mm |
| 315-05-050 |
315-05-150 |
16-20mm |
0.004mm |
Φ16mm |
80mm |
0.5mm |
150mm |

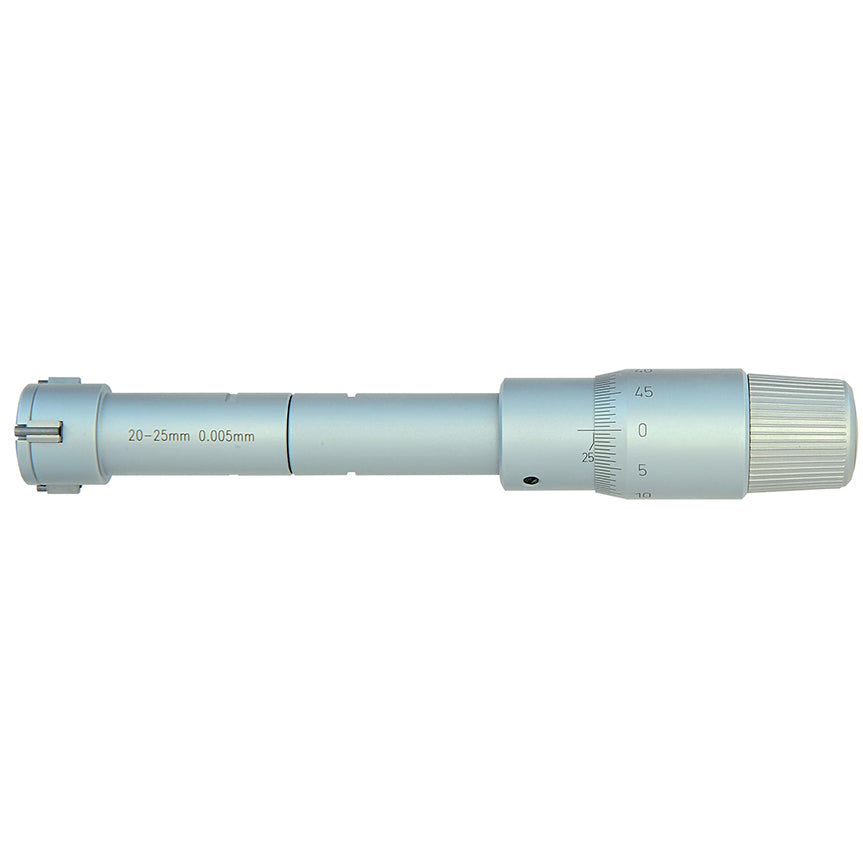

| 315-06-050 |
315-06-150 |
20-25mm |
0.004mm |
Φ25mm |
90mm |
0.5mm |
150mm |
| 315-07-050 |
315-07-150 |
25-30mm |
0.004mm |
Φ25mm |
90mm |
0.5mm |
150mm |
| 315-08-050 |
315-08-150 |
30-40mm |
0.004mm |
Φ40mm |
97mm |
0.5mm |
150mm |
| 315-09-050 |
315-09-150 |
40-50mm |
0.005mm |
Φ40mm |
97mm |
0.5mm |
150mm |
Dimensions
