Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Calibration ring gauge |
L1 |
Extension rod |
| External surface spray painting |

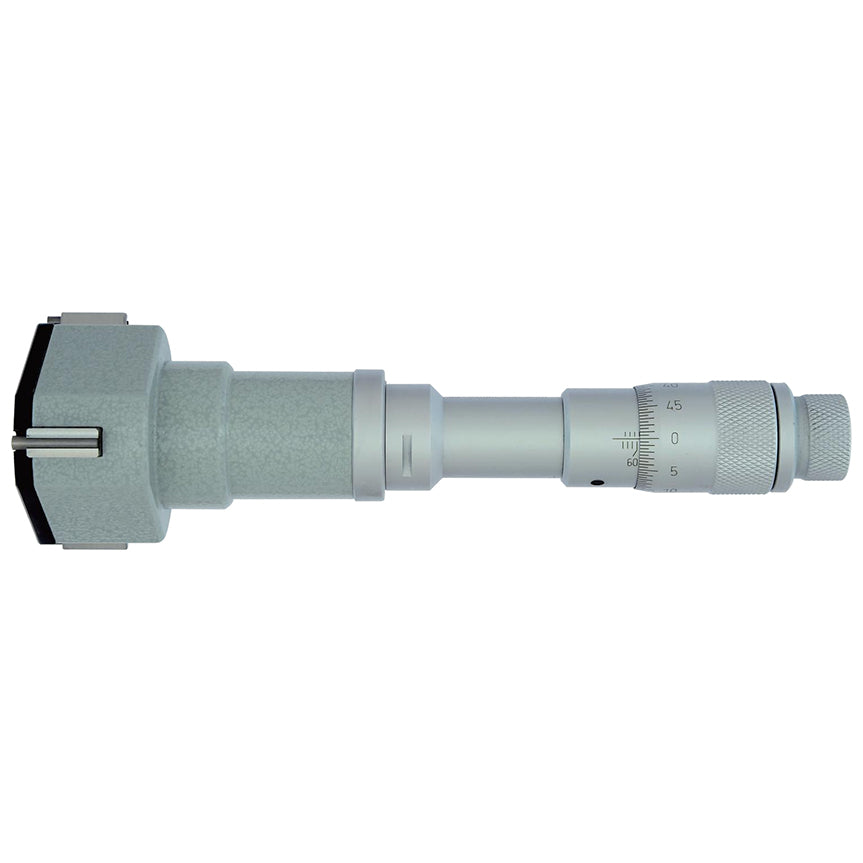

| 315-10-270 |
50-63mm |
0.005mm |
Φ62mm |
114mm |
150mm |
| 315-11-270 |
62-75mm |
0.005mm |
Φ62mm |
114mm |
150mm |
| 315-12-270 |
75-88mm |
0.005mm |
Φ87mm |
114mm |
150mm |
| 315-13-270 |
87-100mm |
0.005mm |
Φ87mm |
114mm |
150mm |
| 315-61-070 |
100-125mm |
0.005mm |
Φ100mm |
145mm |
150mm |
| 315-62-070 |
125-150mm |
0.005mm |
Φ150mm |
145mm |
150mm |
| 315-63-070 |
150-175mm |
0.005mm |
Φ150mm |
145mm |
150mm |
| 315-64-070 |
175-200mm |
0.005mm |
Φ200mm |
145mm |
150mm |
| 315-65-070 |
200-225mm |
0.007mm |
Φ200mm |
145mm |
150mm |
| 315-66-070 |
225-250mm |
0.007mm |
Φ250mm |
145mm |
150mm |
| 315-67-070 |
250-275mm |
0.007mm |
Φ250mm |
145mm |
150mm |
| 315-68-070 |
275-300mm |
0.007mm |
Φ275mm |
145mm |
150mm |

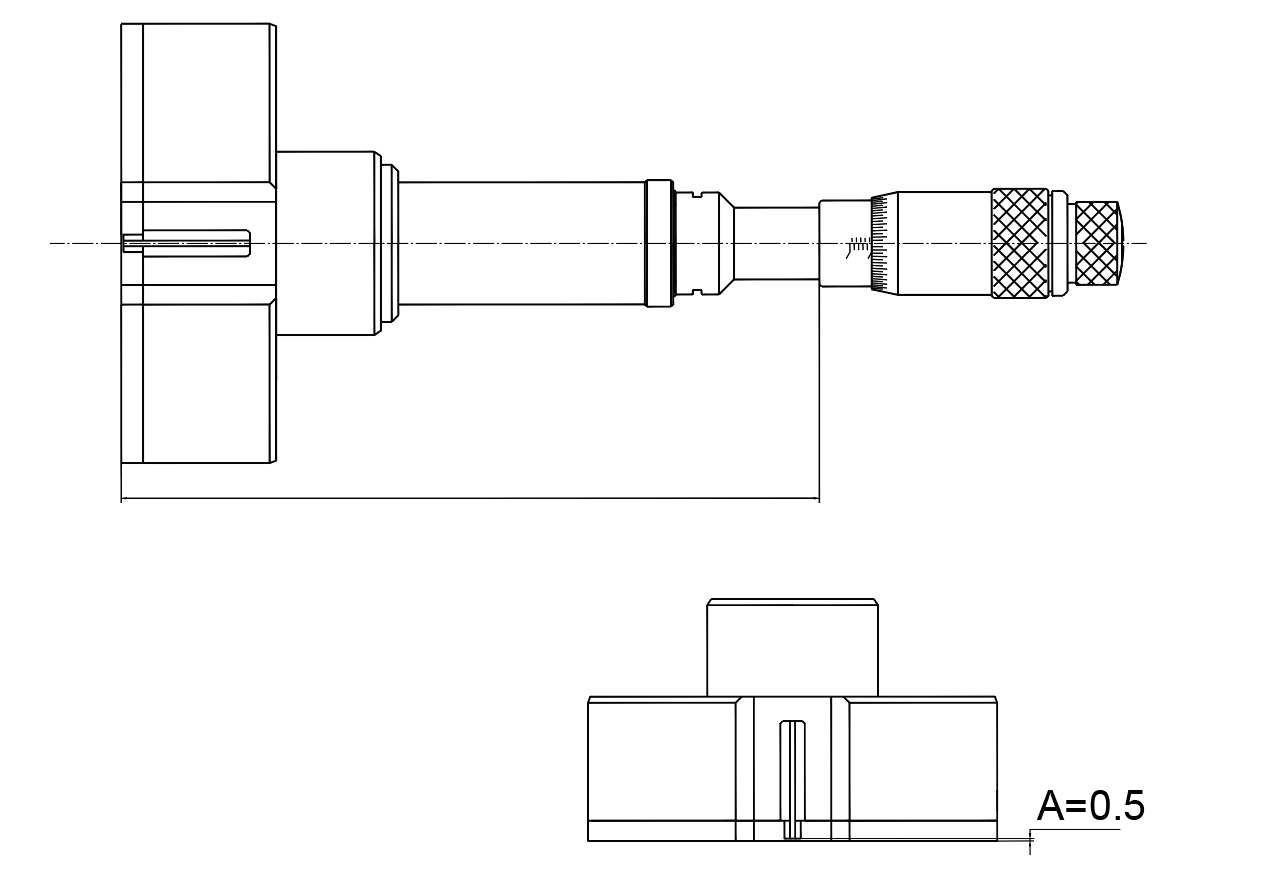

Dimensions

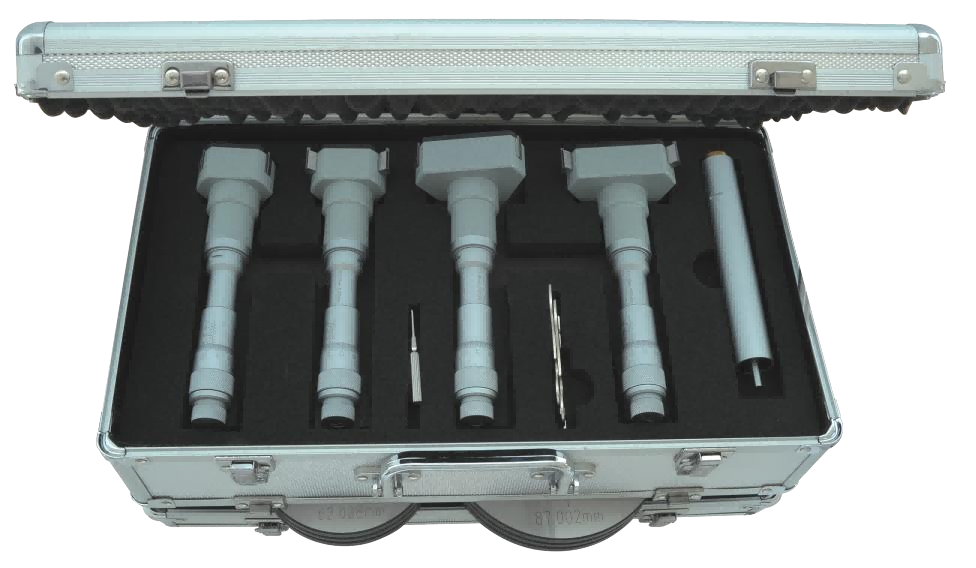

Set of rulers (375-50-270)
Measurement parameters
| Part Number |
Measuring range of ruler |
Calibration ring gauge |
A |
Extension rod |
| Chrome plating on the outer surface |
| 375-22-110 |
2-3mm |
Φ2.5mm |
/ |
/ |
| 375-33-110 |
3-6mm |
Φ4,5,6mm |
/ |
/ |
| 315-44-210 |
6-12mm |
Φ6,8,10mm |
0.5mm |
100mm |
| 315-44-110 |
6-12mm |
Φ6,8,10mm |
1.5mm |
100mm |
| 315-46-070 |
12-20mm |
Φ16mm |
0.5mm |
150mm |
| 315-47-070 |
20-40mm |
Φ25,40mm |
0.5mm |
150mm |
| 315-48-070 |
20-50mm |
Φ25,40mm |
0.5mm |
150mm |
| External surface spray painting |
| 315-50-270 |
50-100mm |
Φ62,87mm |
0.5mm |
150mm |
