Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
Calibration ring gauge |
L1 |
A |
Extension rod |
| Chrome plating on the outer surface |
| 335-01-950 |
6-8mm |
0.004mm |
Φ6mm |
54.5mm |
1.5mm |
100mm |
| 335-02-950 |
8-10mm |
0.004mm |
Φ8mm |
54.5mm |
1.5mm |
100mm |
| 335-03-950 |
10-12mm |
0.004mm |
Φ10mm |
54.5mm |
1.5mm |
100mm |
| 335-04-950 |
12-16mm |
0.004mm |
Φ16mm |
80mm |
0.5mm |
150mm |
| 335-05-950 |
16-20mm |
0.004mm |
Φ16mm |
80mm |
0.5mm |
150mm |
| 335-06-950 |
20-25mm |
0.004mm |
Φ25mm |
90mm |
0.5mm |
150mm |

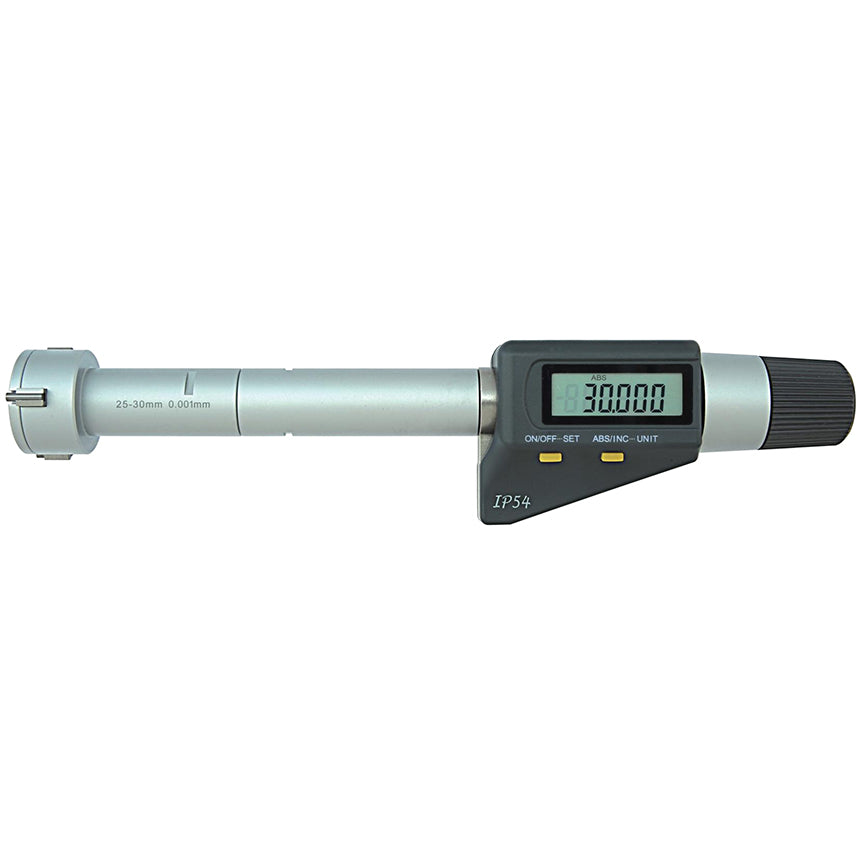

| 335-07-950 |
25-30mm |
0.004mm |
Φ25mm |
90mm |
0.5mm |
150mm |
| 335-08-950 |
30-40mm |
0.004mm |
Φ40mm |
97mm |
0.5mm |
150mm |
| 335-09-950 |
40-50mm |
0.005mm |
Φ40mm |
97mm |
0.5mm |
150mm |
Dimensions
