Description
Measurement parameters
| Part Number | Measuring range | Accuracy | Calibration ring gauge | L |
|---|---|---|---|---|
| 385-01-950 | 2-2.5mm | 0.004mm | Φ2.5mm | 12.5mm |
| 385-02-950 | 2.5-3mm | 0.004mm | Φ2.5mm | 12.5mm |
| 385-03-950 | 3-4mm | 0.004mm | Φ4mm | 22.5mm |
| 385-04-950 | 4-5mm | 0.004mm | Φ5mm | 22.5mm |
| 385-05-950 | 5-6mm | 0.004mm | Φ6mm | 22.5mm |
Dimensions

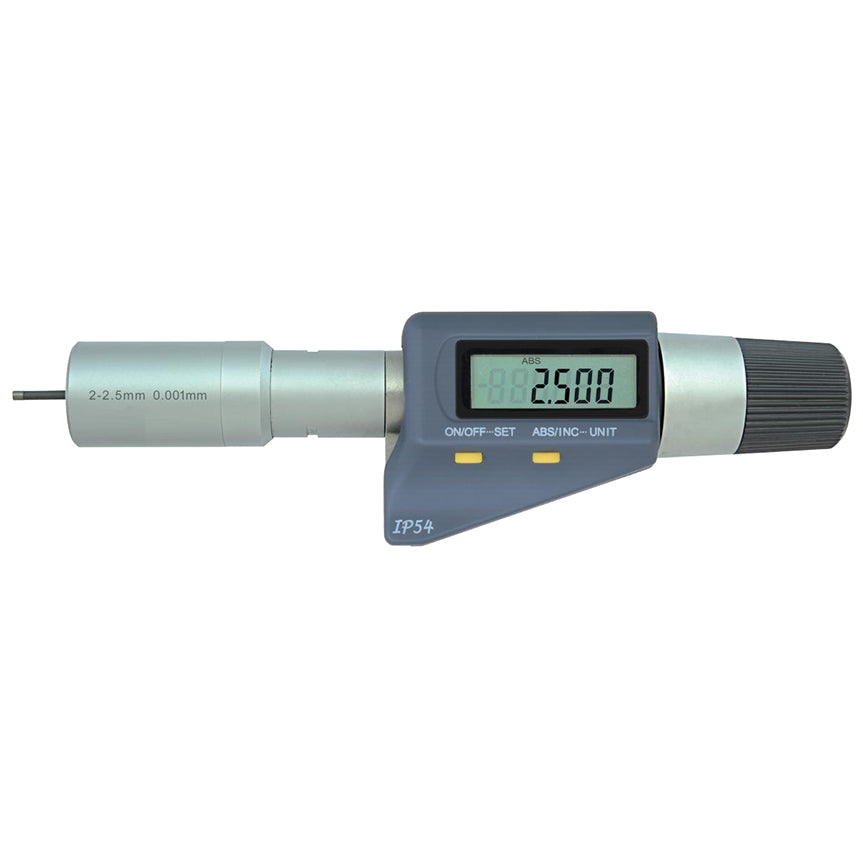

Two-point spring-loaded measuring head
