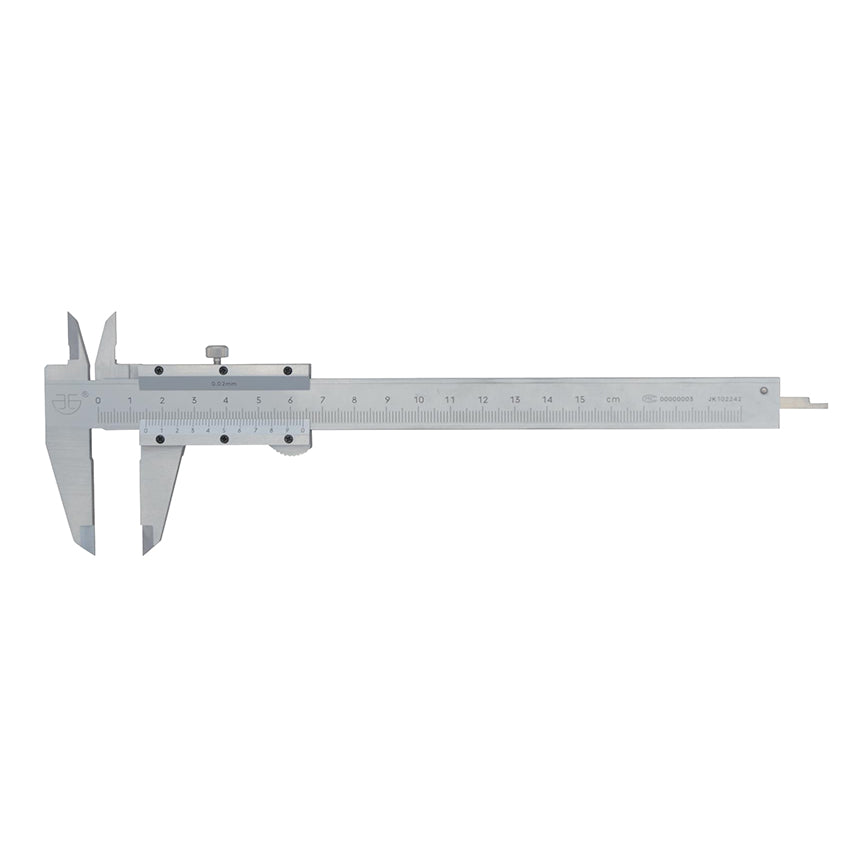

Description
Measurement parameters
| Part Number | Measuring range | Accuracy | Depth rod |
|---|---|---|---|
| 401-11-000 | 0-100mm | ±0.02mm | √ |
| 401-12-000 | 0-125mm | ±0.02mm | √ |
| 401-13-000 | 0-150mm | ±0.02mm | √ |
| 401-14-000 | 0-200mm | ±0.03mm | √ |
Dimensions
Main dimensions
| Measuring range | A | B | C | D | G |
|---|---|---|---|---|---|
| 0-100mm | 165mm | 60mm | 13mm | 30mm | 13mm |
| 0-125mm | 210mm | 76mm | 16mm | 40mm | 15mm |
| 0-150mm | 225mm | 76mm | 16mm | 40mm | 15mm |
| 0-200mm | 280mm | 76mm | 16mm | 40mm | 15mm |
