Description
Measurement parameters
Part Number | Measuring range | Accuracy | Depth rod |
---|---|---|---|
401-12-002 | 0-125mm/0-5" | ±0.02mm | √ |

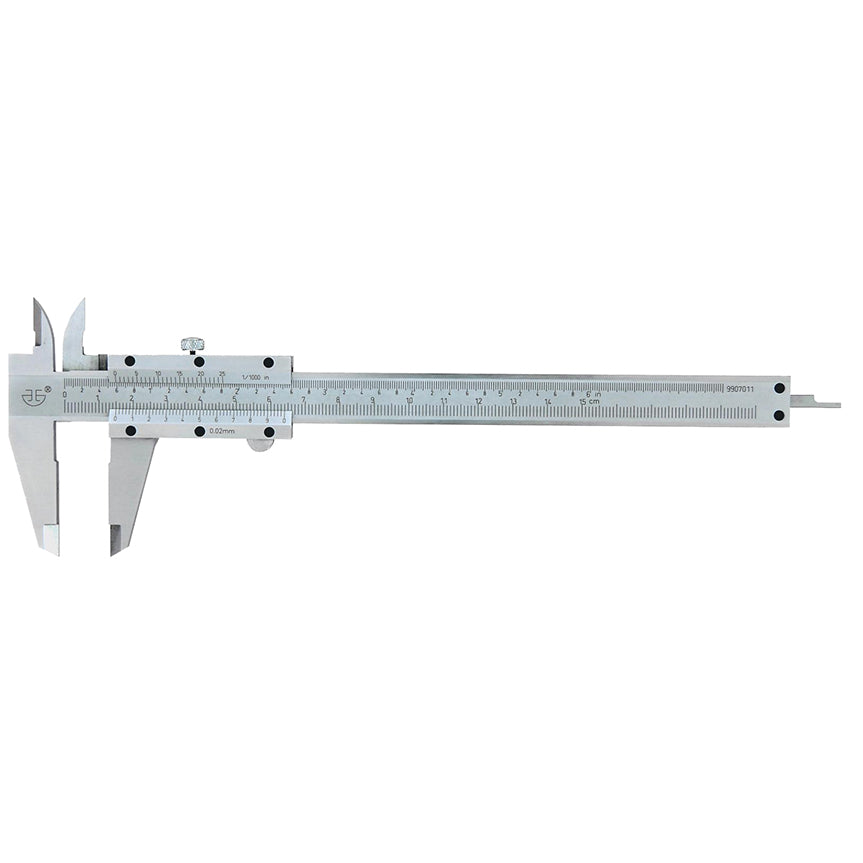

401-13-002 | 0-150mm/0-6" | ±0.02mm | √ |
401-14-002 | 0-200mm/0-8" | ±0.03mm | √ |
401-15-002 | 0-300mm/0-12" | ±0.04mm | × |
Dimensions (measuring range: ≤200mm)
Dimensions (measuring range: 0-300mm)
Main dimensions
Measuring range | A | B | C | D | G |
---|---|---|---|---|---|
0-125mm/0-5" | 210mm | 76mm | 16mm | 40mm | 15mm |
0-150mm/0-6" | 225mm | 76mm | 16mm | 40mm | 15mm |
0-200mm/0-8" | 280mm | 76mm | 16mm | 40mm | 15mm |
0-300mm/0-12" | 415mm | 120mm | 20mm | 60mm | 18.5mm |
