Description
Measurement parameters
| Part Number | Measuring range | Accuracy |
|---|---|---|
| 451-13-000 | 0-150mm | ±0.02mm |
| 451-14-000 | 0-200mm | ±0.03mm |
| 451-15-040 | 0-300mm | ±0.04mm |

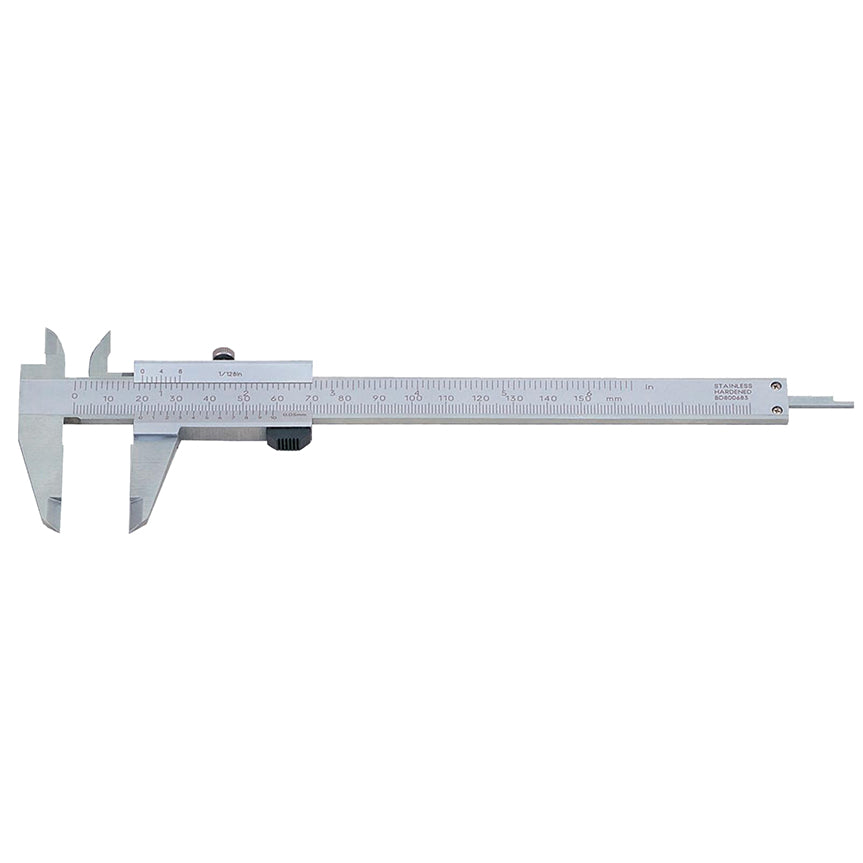

| 451-13-004 | 0-150mm/0-6" | ±0.05mm |
| 451-14-004 | 0-200mm/0-8" | ±0.05mm |
| 451-15-044 | 0-300mm/0-12" | ±0.06mm |
Dimensions
Main dimensions
| Measuring range | A | B | C | D | G |
|---|---|---|---|---|---|
| 0-150mm | 228mm | 77mm | 16.5mm | 40mm | 16mm |
| 0-200mm | 290mm | 90.5mm | 19mm | 50mm | 17mm |
| 0-300mm | 403mm | 111.5mm | 22mm | 64mm | 20mm |
