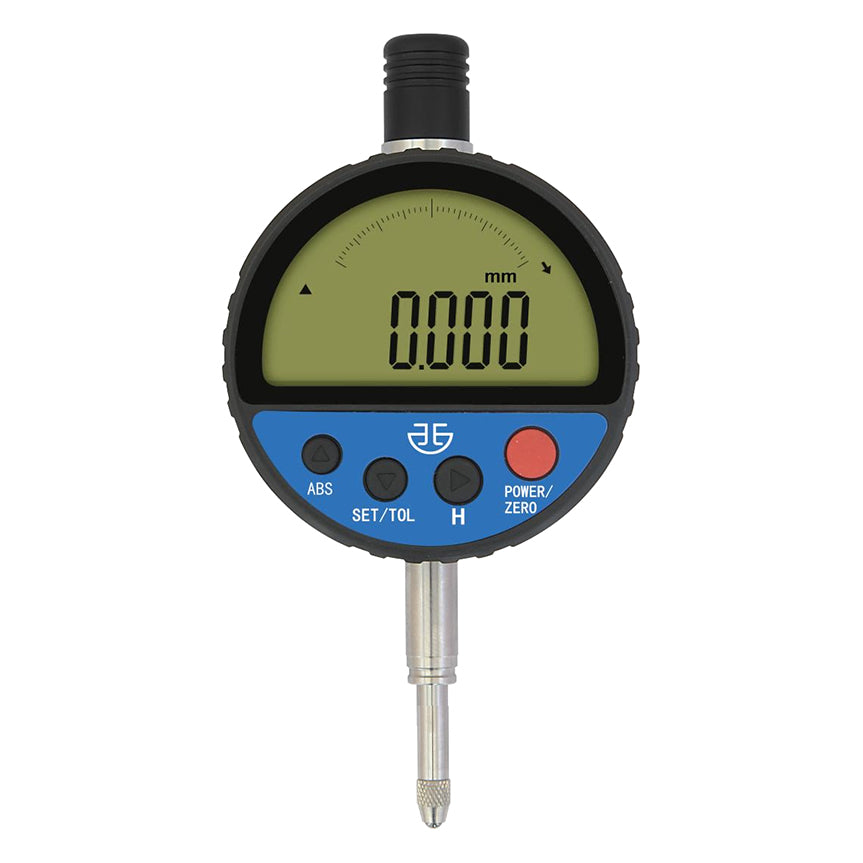

Description
Measurement parameters
| Part Number | Measuring range | Resolution | Indication error @20℃ | Return error @20℃ | Measuring force | weight |
|---|---|---|---|---|---|---|
| 503-00-000 | 0-12.7mm/0-0.5" | 0.001mm | 0.003mm | 0.002mm | ≤1.5N | 180g |
| 503-01-000 | 0-15mm/0-0.6" | 0.001mm | 0.003mm | 0.002mm | ≤1.5N | 180g |
| 503-02-000 | 0-25.4mm/0-1" |
0.001mm |
0.003mm | 0.002mm | ≤1.8N | 200g |
| 503-03-000 | 0-50.8mm/0-2" | 0.001mm | 0.005mm | 0.002mm | ≤2.3N | 230g |
Dimensions
Main dimensions
| Measuring range | a | b | c |
|---|---|---|---|
| 0-12.7mm | 123.7mm | 63.5mm | 17.0mm |
| 0-15mm | 123.7mm | 63.5mm | 17.0mm |
| 0-25.4mm | 151.7mm | 81.0mm | 27.7mm |
| 0-50.8mm | 222.2mm | 126.0mm | 53.2mm |
