Description
Measurement parameters
| Part Number |
Measuring range |
Indication error @20℃ |
Return error @20℃ |
Measuring force |
weight |
| 505-00-100 |
0-12.7mm |
0.002mm |
0.0015mm |
≤1.5N |
180g |
| 505-01-100 |
0-15mm |
0.002mm |
0.0015mm |
≤1.5N |
180g |
| 505-02-100 |
0-25.4mm |
0.002mm |
0.0015mm |
≤1.8N |
200g |
| 505-03-100 |
0-50.8mm |
0.004mm |
0.002mm |
≤2.3N |
230g |
Dimensions
Main dimensions
| Measuring range |
a |
b |
c |
| 0-12.7mm |
123.7mm |
63.5mm |
17.0mm |
| 0-15mm |
123.7mm |
63.5mm |
17.0mm |
| 0-25.4mm |
151.7mm |
81.0mm |
27.7mm |
| 0-50.8mm |
222.2mm |
126.0mm |
53.2mm |

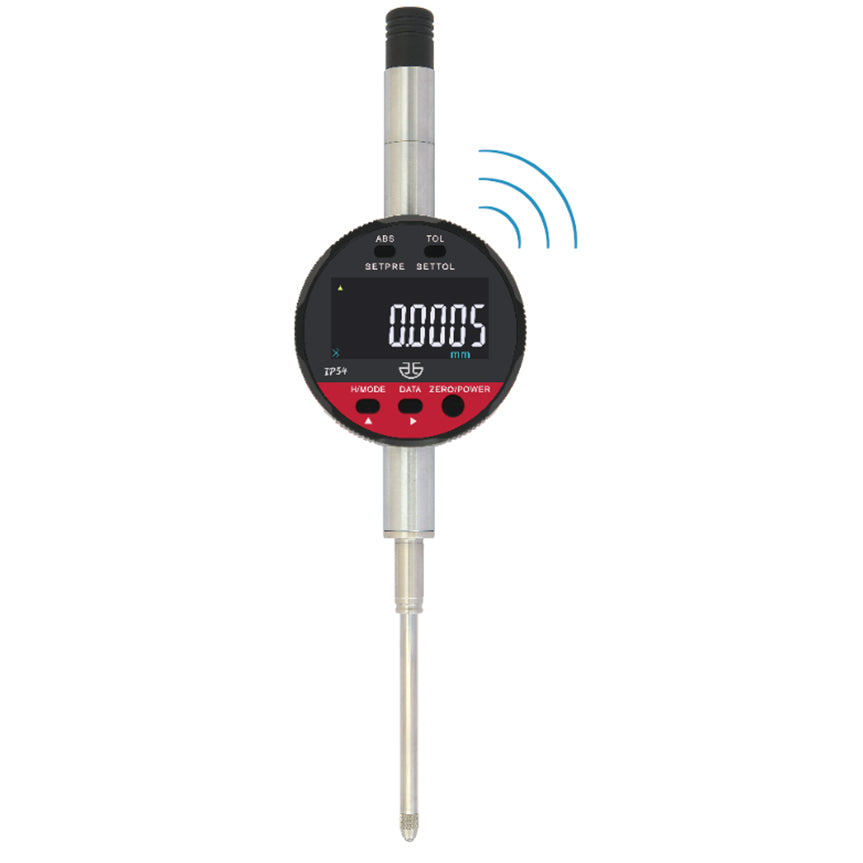

505-0X-100 Series USB Type-C Wired Output
505-0X-100 series products have built-in wireless transmission
