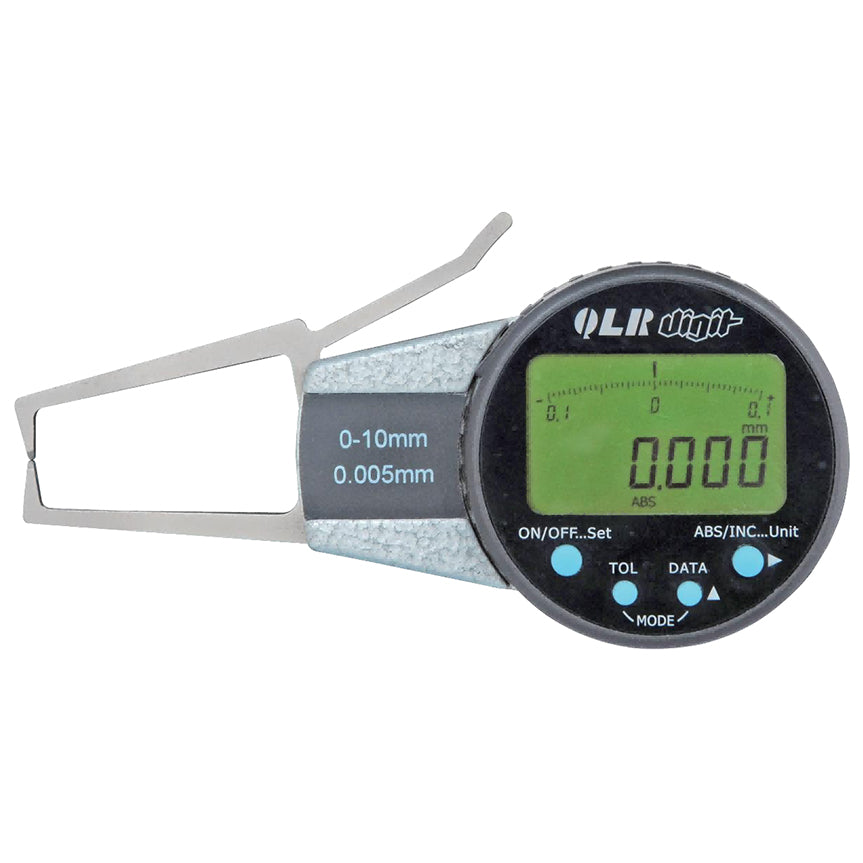

507-11-012 Electronic external card gauge

507-11-012 Electronic external card gauge

$149.00
$149.00
Sale Sold out

SKU:

Free Shipping

Free standard shipping on orders over 9.00 $

Return Policy

Returns within 30 days of receiving the item, as long as products are in their original condition, unused, and in the original packaging. Refunds or exchanges are available once the return is processed, with some exceptions based on the item’s condition and category.

MORE
View full details

Description

Measurement parameters

Part Number Measuring range Accuracy Digital resolution Analog resolution Measuring surface form
Stroke 10mm
507-11-012 0-10mm 0.02mm 0.005mm 0.01；0.02；0.05mm A-type measuring surface
507-12-012 10-20mm 0.02mm 0.005mm
507-13-012 20-30mm 0.02mm 0.005mm
507-14-012 30-40mm 0.02mm 0.005mm
507-15-012 40-50mm 0.02mm 0.005mm
507-11-112 0-10mm 0.02mm 0.005mm 0.01；0.02；0.05mm B-type measuring surface
507-12-112 10-20mm 0.02mm 0.005mm
507-13-112 20-30mm 0.02mm 0.005mm
507-14-112 30-40mm 0.02mm 0.005mm
507-15-112 40-50mm 0.02mm 0.005mm
Stroke: 20mm
507-22-012 5-25mm 0.03mm 0.005mm 0.01；0.02；0.05mm A-type measuring surface
507-23-012 10-30mm 0.03mm 0.005mm
507-24-012 20-40mm 0.03mm 0.005mm
507-25-012 30-50mm 0.03mm 0.005mm
507-26-012 40-60mm 0.03mm 0.005mm
507-22-112 0-20mm 0.03mm 0.005mm 0.01；0.02；0.05mm B-type measuring surface
507-23-112 10-30mm 0.03mm 0.005mm
507-24-112 20-40mm 0.03mm 0.005mm
507-25-112 30-50mm 0.03mm 0.005mm
507-26-112 40-60mm 0.03mm 0.005mm

Measuring surface form

Enterprise WeChat screenshot_17036357368850

Dimensions

Enterprise WeChat screenshot_17036357432233

Main dimensions

Measuring range L S H Probe




A(R) B(D)
Stroke 10mm
0-10mm 40mm 3 mm 8mm 0.5mm Φ1.5mm
10-20mm 40mm 3 mm 8mm 0.5mm Φ1.5mm
20-30mm 40mm 3 mm 8mm 0.5mm Φ1.5mm
30-40mm 40mm 3 mm 8mm 0.5mm Φ1.5mm
40-50mm 40mm 3 mm 8mm 0.5mm Φ1.5mm
Stroke: 20mm
0-20mm 80mm 6.5mm 25mm 0.75mm Φ1.5mm
10-30mm 80mm 6.5mm 25mm 0.75mm Φ1.5mm
20-40mm 80mm 6.5mm 25mm 0.75mm Φ1.5mm
30-50mm 80mm 6.5mm 25mm 0.75mm Φ1.5mm
40-60mm 80mm 6.5mm 25mm 0.75mm Φ1.5mm

Function

power button √
Absolute and relative measurement mode switch key √
Metric and Imperial measurement mode switch key √
Display data output key √
Absolute measurement initial value setting key √
Memorize maximum value, minimum value or keep display √
Setting Tolerances √
battery model CR2032
Automatic power-off √
Data output port √
Interface cable (optional) P1502,P1505

Measure the root diameter of the keyway
