Description
Measurement parameters
| Part Number |
Measuring range |
A |
B |

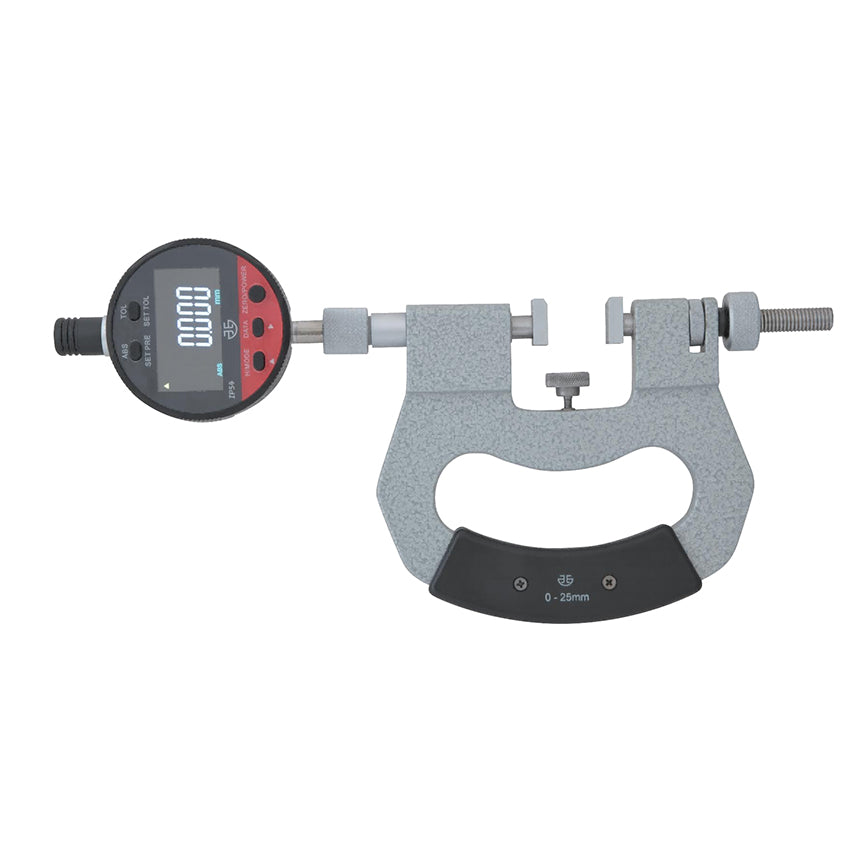

| 509-01-150 |
0-25mm |
42mm |
20.0mm |
| 509-02-150 |
25-50mm |
69mm |
32.5mm |
| 509-03-150 |
50-75mm |
94mm |
45.0mm |
| 509-04-150 |
75-100mm |
119mm |
57.5mm |
| 509-05-150 |
100-125mm |
144mm |
70.0mm |
| 509-06-150 |
125-150mm |
169mm |
82.5mm |
| 509-07-150 |
150-175mm |
194mm |
95.0mm |
| 509-08-150 |
175-200mm |
219mm |
107.5mm |
| 509-09-150 |
200-225mm |
244mm |
120.0mm |
| 509-10-150 |
225-250mm |
269mm |
132.5mm |
| 509-11-150 |
250-275mm |
294mm |
145.0mm |
| 509-12-150 |
275-300mm |
319mm |
157.5mm |
Dimensions
