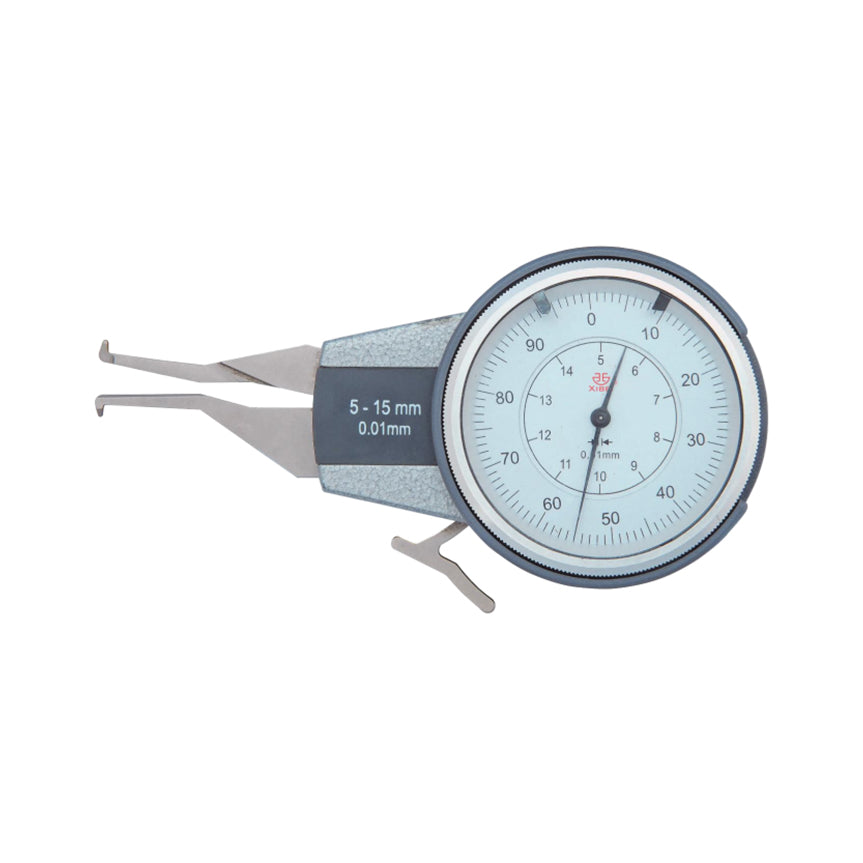

Description
Main dimensions
| Measuring range |
L |
S |
H |
Probe |
|
|
|
|
A(R) |
B(D) |
| Stroke 10mm |
| 5-15mm |
20mm |
1.0mm |
1.5mm |
0.3mm |
/ |
| 10-20mm |
25mm |
1.5mm |
3.0mm |
0.3mm |
Φ1.5mm |
| 20-30mm |
30mm |
2.0mm |
6.5mm |
0.5mm |
Φ1.5mm |
| 30-40mm |
30mm |
2.5mm |
9.0mm |
0.5mm |
Φ1.5mm |
| 40-50mm |
30mm |
2.5mm |
9.0mm |
0.5mm |
Φ1.5mm |
| Stroke: 20mm |
| 5-25mm |
35mm |
1mm |
1.5mm |
0.3mm |
/ |
| 10-30mm |
55mm |
2mm |
3.5mm |
0.5mm |
Φ1.5mm |
| 20-40mm |
80mm |
3 mm |
6.5mm |
0.5mm |
Φ1.5mm |
| 30-50mm |
80mm |
3 mm |
8.5mm |
0.5mm |
Φ1.5mm |
| 40-60mm |
80mm |
3 mm |
8.5mm |
0.5mm |
Φ1.5mm |
Measuring inner hole diameter
