Description
F3500
Measurement parameters
| Part Number | Three needle diameter | Part Number | Three needle diameter | ||||
|---|---|---|---|---|---|---|---|
| Mounting hole diameter Φ6.5 | Mounting hole diameter Φ8 | ||||||
| Without three needles | |||||||
| F1001 | Φ0.17~Φ0.30 | F1101 | Φ0.17~Φ0.30 | ||||
| F1002 | Φ0.30~Φ0.50 | F1102 | Φ0.30~Φ0.50 | ||||

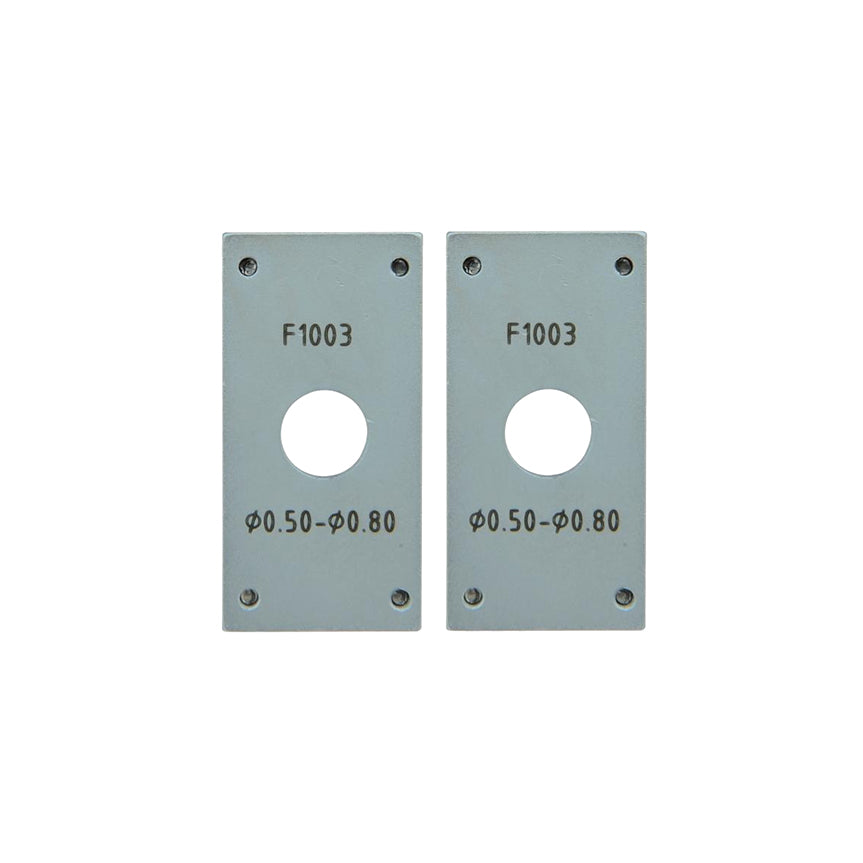

| F1003 | Φ0.50~Φ0.80 | F1103 | Φ0.50~Φ0.80 | ||||
| F1004 | Φ0.80~Φ1.10 | F1104 | Φ0.80~Φ1.10 | ||||
| F1005 | Φ1.20~Φ1.50 | F1105 | Φ1.20~Φ1.50 | ||||
| F1006 | Φ1.60~Φ2.00 | F1106 | Φ1.60~Φ2.00 | ||||
| F1007 | Φ2.30~Φ2.60 | F1107 | Φ2.30~Φ2.60 | ||||
| F1008 | Φ2.80~Φ3.20 | F1108 | Φ2.80~Φ3.20 | ||||
| Kit F1000 | Kit F1100 | ||||||
| Part Number | Three needle diameter | Part Number | Three needle diameter | Part Number | Three needle diameter | Part Number | Three needle diameter |
|---|---|---|---|---|---|---|---|
| With three needles | |||||||
| F3501 | Φ0.17 | F3510 | Φ0.62 | F3601 | Φ0.17 | F3610 | Φ0.62 |
| F3502 | Φ0.195 | F3511 | Φ0.725 | F3602 | Φ0.195 | F3611 | Φ0.725 |
| F3503 | Φ0.22 | F3512 | Φ0.895 | F3603 | Φ0.22 | F3612 | Φ0.895 |
| F3504 | Φ0.25 | F3513 | Φ1.1 | F3604 | Φ0.25 | F3613 | Φ1.1 |
| F3505 | Φ0.29 | F3514 | Φ1.35 | F3605 | Φ0.29 | F3614 | Φ1.35 |
| F3506 | Φ0.335 | F3515 | Φ1.65 | F3606 | Φ0.335 | F3615 | Φ1.65 |
| F3507 | Φ0.39 | F3516 | Φ2.05 | F3607 | Φ0.39 | F3616 | Φ2.05 |
| F3508 | Φ0.455 | F3517 | Φ2.55 | F3608 | Φ0.455 | F3617 | Φ2.55 |
| F3509 | Φ0.53 | F3518 | Φ3.2 | F3609 | Φ0.53 | F3618 | Φ3.2 |
| Kit F3500 | Kit F3600 | ||||||
