Description
Measurement parameters
| Part Number | Specification | Dimensional accuracy | Parallelism |
size |
|
|---|---|---|---|---|---|
| Inner hole | Outside diameter | ||||
| G1101 | 25mm | ±0.001mm | 0.001mm | Φ10mm | Φ15mm |
| G1102 | 50mm | ±0.001mm | 0.001mm | Φ10mm | Φ15mm |

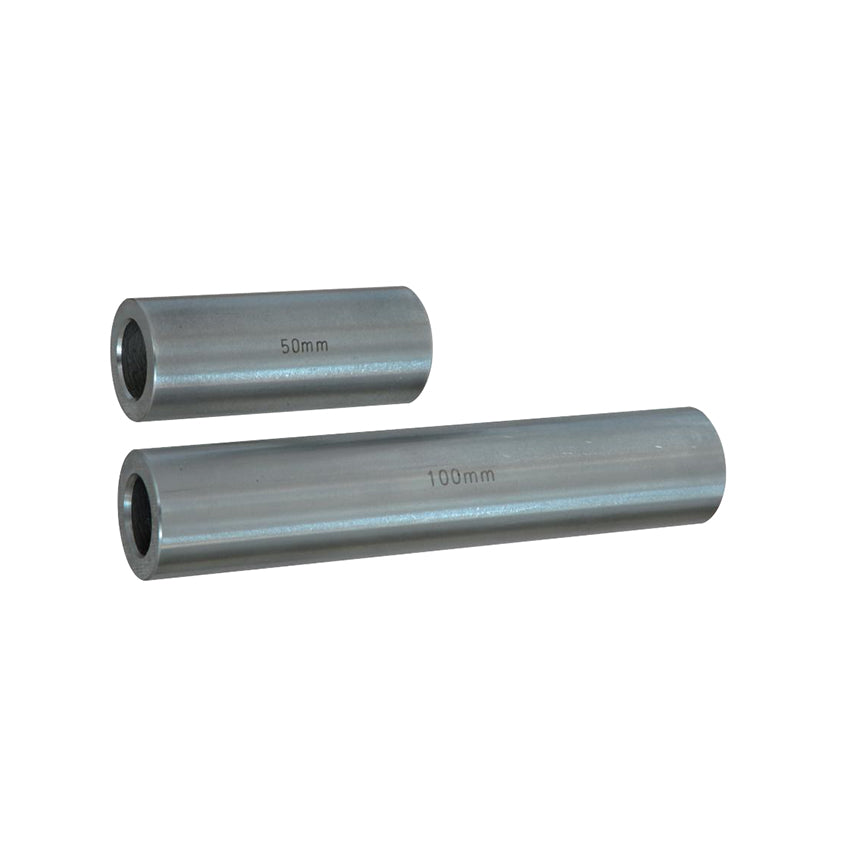

| G1201 | 50mm | ±0.002mm | 0.002mm | Φ12mm | Φ20mm |
| G1202 | 100mm | ±0.002mm | 0.002mm | Φ12mm | Φ20mm |
