Description
Measurement parameters
Part Number | Size LXα | Dimensional accuracy | d |
---|---|---|---|
J1101 | 25mmX60° | ±0.0030mm | Φ7mm |

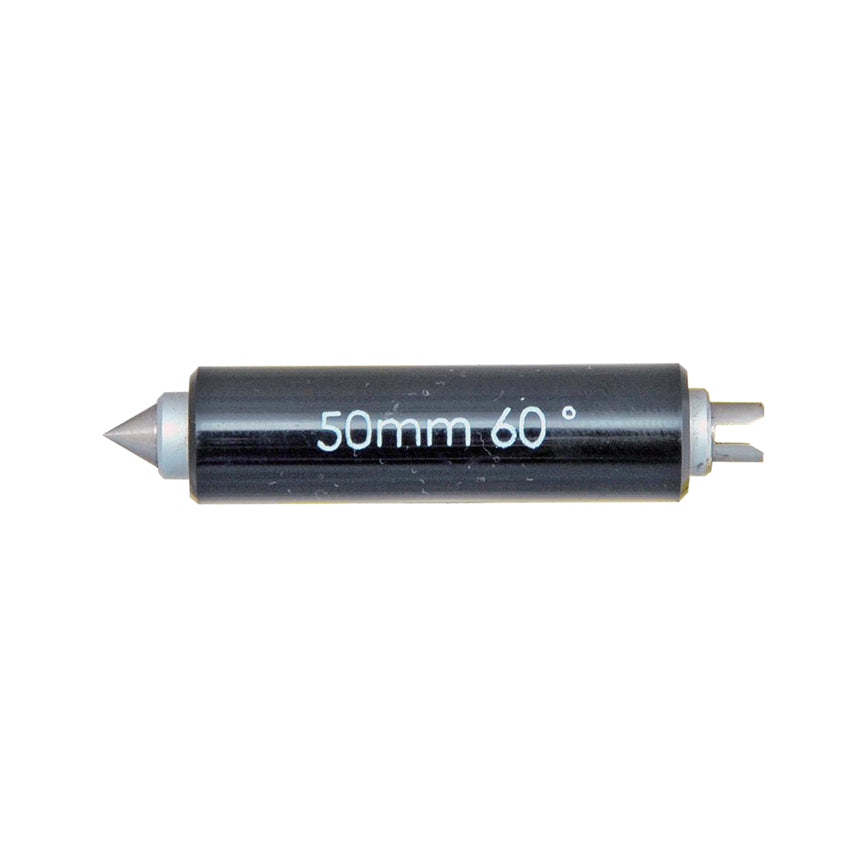

J1102 | 50mmX60° | ±0.0035mm | Φ7mm |
J1103 | 75mmX60° | ±0.0040mm | Φ8mm |
J1104 | 100mmX60° | ±0.0045mm | Φ8mm |
J1105 | 125mmX60° | ±0.0050mm | Φ8mm |
J1106 | 150mmX60° | ±0.0055mm | Φ8mm |
J1107 | 175mmX60° | ±0.0060mm | Φ8mm |
J1108 | 200mmX60° | ±0.0060mm | Φ8mm |
J1201 | 25mmX55° | ±0.0030mm | Φ7mm |
J1202 | 50mmX55° | ±0.0035mm | Φ7mm |
J1203 | 75mmX55° | ±0.0040mm | Φ8mm |
J1204 | 100mmX55° | ±0.0045mm | Φ8mm |
J1205 | 125mmX55° | ±0.0050mm | Φ8mm |
J1206 | 150mmX55° | ±0.0055mm | Φ8mm |
J1207 | 175mmX55° | ±0.0060mm | Φ8mm |
J1208 | 200mmX55° | ±0.0060mm | Φ8mm |
