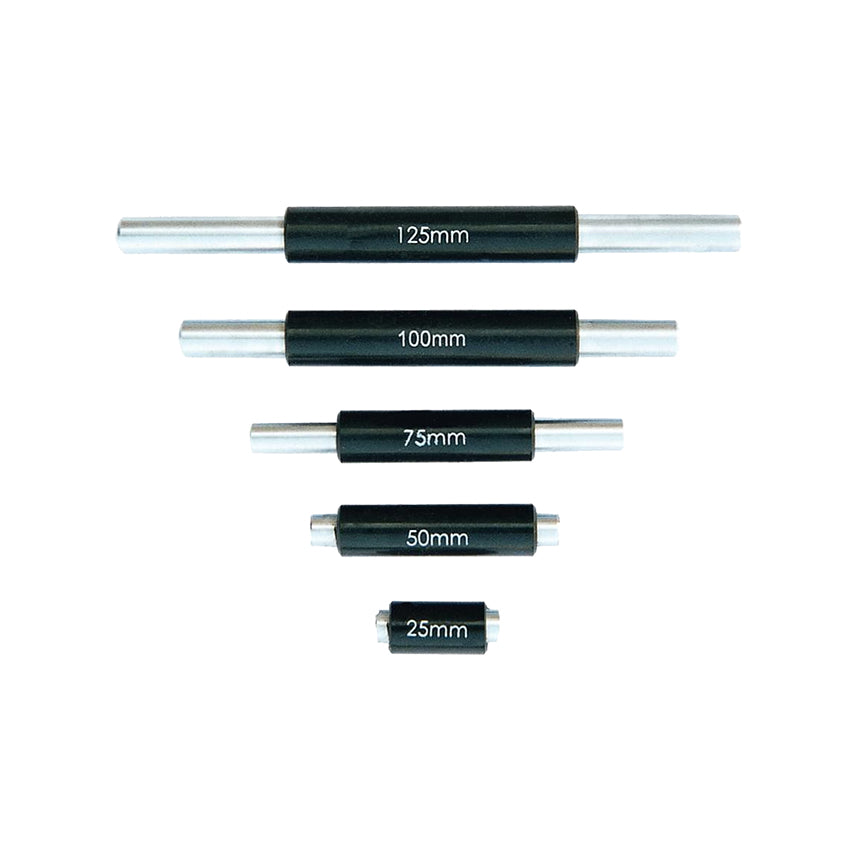

Description
Measurement parameters
| Part Number |
Measuring range |
Accuracy |
D |
Measuring surface |
| A010 |
25mm |
±0.0012mm |
Φ7mm |
Flat measuring surface |
| A020 |
50mm |
±0.0012mm |
Φ7mm |
| A030 |
75mm |
±0.0015mm |
Φ8mm |
| A040 |
100mm |
±0.0020mm |
Φ8mm |
| A050 |
125mm |
±0.0025mm |
Φ8mm |
| A060 |
150mm |
±0.0025mm |
Φ8mm |
| A070 |
175mm |
±0.0025mm |
Φ8mm |
| A080 |
200mm |
±0.0035mm |
Φ8mm |
| A090 |
225mm |
±0.0035mm |
Φ8mm |
| A100 |
250mm |
±0.0035mm |
Φ8mm |
| A110 |
275mm |
±0.0040mm |
Φ8mm |
| A120 |
300mm |
±0.0040mm |
Φ16mm |
Ball measuring surface |
| A130 |
325mm |
±0.0045mm |
Φ16mm |
| A140 |
350mm |
±0.0045mm |
Φ16mm |
| A150 |
375mm |
±0.0045mm |
Φ16mm |
| A160 |
400mm |
±0.0045mm |
Φ16mm |
| A170 |
425mm |
±0.0050mm |
Φ16mm |
| A180 |
450mm |
±0.0050mm |
Φ16mm |
| A190 |
475mm |
±0.0050mm |
Φ16mm |
| A200 |
500mm |
±0.0050mm |
Φ16mm |
| A212 |
525mm |
±0.0055mm |
Φ16mm |
| A232 |
575mm |
±0.0055mm |
Φ16mm |
| A252 |
625mm |
±0.0055mm |
Φ16mm |
| A272 |
675mm |
±0.0065mm |
Φ16mm |
| A292 |
725mm |
±0.0065mm |
Φ16mm |
| A312 |
775mm |
±0.0065mm |
Φ16mm |
| A332 |
825mm |
±0.0075mm |
Φ16mm |
| A352 |
875mm |
±0.0075mm |
Φ16mm |
| A372 |
925mm |
±0.0075mm |
Φ16mm |
| A392 |
975mm |
±0.0075mm |
Φ16mm |
| A412 |
1050mm |
±0.0090mm |
Φ23mm |
| A432 |
1150mm |
±0.0090mm |
Φ23mm |
| A452 |
1250mm |
±0.0090mm |
Φ23mm |
| A472 |
1350mm |
±0.0105mm |
Φ23mm |
| A492 |
1450mm |
±0.0105mm |
Φ23mm |
| A512 |
1550mm |
±0.0105mm |
Φ23mm |
| A532 |
1650mm |
±0.0125mm |
Φ23mm |
| A552 |
1750mm |
±0.0125mm |
Φ23mm |
| A572 |
1850mm |
±0.0125mm |
Φ23mm |
| A592 |
1950mm |
±0.0125mm |
Φ23mm |
| A612 |
2050mm |
±0.0150mm |
Φ34mm |
| A632 |
2150mm |
±0.0150mm |
Φ34mm |
| A652 |
2250mm |
±0.0150mm |
Φ34mm |
| A672 |
2350mm |
±0.0150mm |
Φ34mm |
| A692 |
2450mm |
±0.0150mm |
Φ34mm |
| A712 |
2550mm |
±0.0180mm |
Φ34mm |
| A732 |
2650mm |
±0.0180mm |
Φ34mm |
| A752 |
2750mm |
±0.0180mm |
Φ34mm |
| A772 |
2850mm |
±0.0180mm |
Φ34mm |
| A792 |
2950mm |
±0.0180mm |
Φ34mm |
Dimensions
