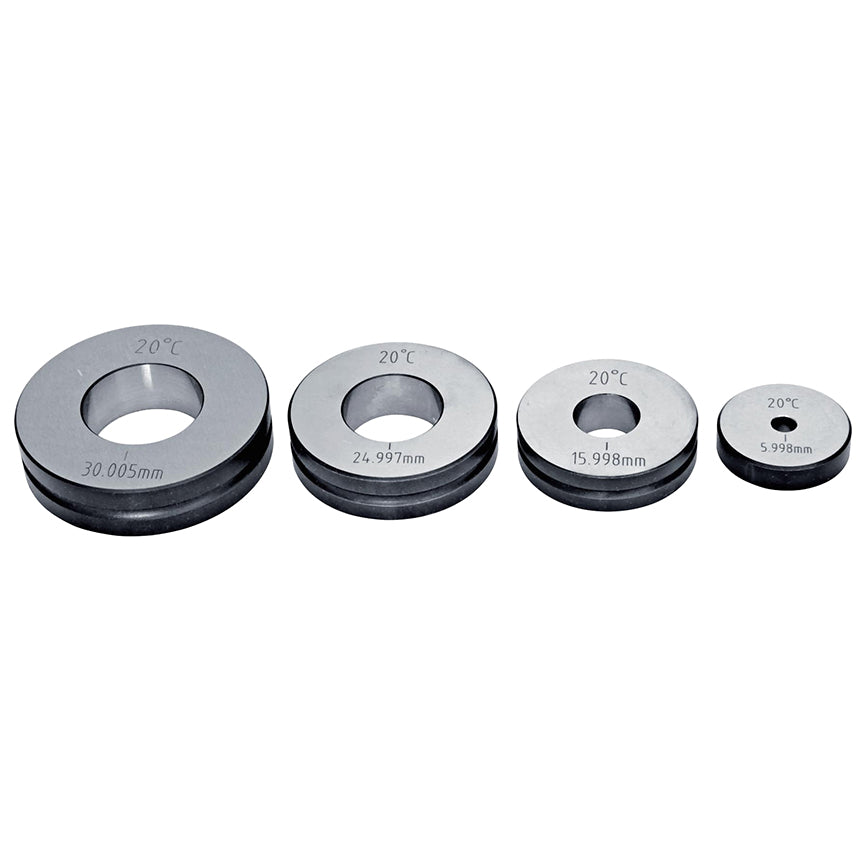

Description
Measurement parameters·Metric
| Part Number |
Specification |
Uncertainty of line size |
Cylindricity |
The error between the actual size and the true value |
DIN2250 compliant article numbers |
| M130 |
2.5mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M134 |
| M150 |
4mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M154 |
| M170 |
5mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M174 |
| M190 |
6mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M194 |
| M220 |
8mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M224 |
| M222 |
9mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M226 |
| M230 |
10mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M234 |
| M240 |
11mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M244 |
| M252 |
14mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M256 |
| M254 |
15mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M258 |
| M260 |
16mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M264 |
| M262 |
18mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M266 |
| M270 |
20mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M274 |
| M272 |
22mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M276 |
| M290 |
25mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M294 |
| M292 |
27mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M296 |
| M300 |
30mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M304 |
| M310 |
35mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M314 |
| M320 |
40mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M324 |
| M322 |
42mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M326 |
| M330 |
45mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M334 |
| M332 |
47mm |
±0.0015mm |
0.0010mm |
±0.01mm |
M336 |
| M342 |
52mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M346 |
| M344 |
55mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M348 |
| M350 |
60mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M354 |
| M360 |
62mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M364 |
| M362 |
65mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M366 |
| M364 |
67mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M368 |
| M370 |
70mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M374 |
| M372 |
71mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M376 |
| M380 |
75mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M384 |
| M382 |
80mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M386 |
| M390 |
85mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M394 |
| M392 |
86mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M396 |
| M402 |
90mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M406 |
| M404 |
95mm |
±0.0015mm |
0.0015mm |
±0.02mm |
M408 |
| M420 |
100mm |
±0.0015mm |
0.0020mm |
±0.02mm |
M424 |
| M422 |
105mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M426 |
| M424 |
110mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M428 |
| M610 |
112.5mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M614 |
| M428 |
115mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M432 |
| M430 |
120mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M434 |
| M432 |
125mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M436 |
| M434 |
130mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M438 |
| M620 |
137.5mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M624 |
| M630 |
162.5mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M634 |
| M632 |
167.5mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M636 |
| M450 |
175mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M454 |
| M640 |
187.5mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M644 |
| M460 |
200mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M464 |
| M650 |
212.5mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M654 |
| M480 |
225mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M484 |
| M482 |
230mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M486 |
| M660 |
237.5mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M664 |
| M500 |
250mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M504 |
| M670 |
262.5mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M674 |
| M520 |
275mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M527 |
| M680 |
287.5mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M684 |
| M540 |
300mm |
±0.0025mm |
0.0020mm |
±0.02mm |
M544 |
Measurement parameters·Inch
| Part Number |
Specification |
Uncertainty of line size |
Cylindricity |
The error between the actual size and the true value |
DIN2250 compliant article numbers |
| M251 |
0.5" |
±0.00006" |
0.00004" |
± 0.0004" |
M257 |
| M261 |
0.65" |
±0.00006" |
0.00004" |
± 0.0004" |
M267 |
| M265 |
0.725" |
±0.00006" |
0.00004" |
± 0.0004" |
M269 |
| M275 |
0.9" |
±0.00006" |
0.00004" |
± 0.0004" |
M279 |
| M295 |
1.1" |
±0.00006" |
0.00004" |
± 0.0004" |
M299 |
| M321 |
1.6" |
±0.00006" |
0.00004" |
± 0.0004" |
M325 |
| M331 |
1.8" |
±0.00006" |
0.00004" |
± 0.0004" |
M335 |
| M345 |
2.25" |
±0.00006" |
0.00006" |
± 0.0008" |
M349 |
| M385 |
3.25" |
±0.00006" |
0.00006" |
± 0.0008" |
M389 |
| M401 |
3.5" |
±0.00006" |
0.00006" |
± 0.0008" |
M407 |
| M405 |
3.75" |
±0.00006" |
0.00006" |
± 0.0008" |
M409 |
